2-Piece Can Production Line
CNC Gantry Multi-Module Type

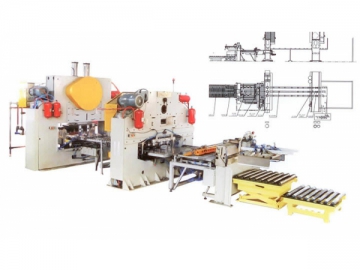

Our 2-piece can production line consists of two gantry style CNC presses, which when working together, can complete three technological processes. The CNC-CI-L model metal sheet feed press accomplishes the first stages of production, and the CNC-CIII model metal sheet feed press carries out the second and third stages. The 2-piece can production line can be installed with up to 4 modules, and its maximum production capability is up to 300 metal cans per minute.
Technical Parameters| Type | | |
| Nominal Pressure | 90T | 120T |
| Slide Stroke | 140mm | 170mm |
| Max. Number of Strokes | 150 times/minute | 100 times/minute |
| Max. Number of Mold | 3 | 4 |
| Max. Height of Stretch | 30mm | 466mm |
| Max. Enclosed Adjustment Amount | 17mm | 25mm |
| Max. Format of Sheet | 1,150×1,150mm | 1,150×1,150mm |
| Main Motor Power | 11Kw | 18.5Kw |
| Total Power | 18Kw | 27Kw |
| Total Weight | 9.5T | 12T |
| Dimension | 11,915×5,150×3,350mm | 11,915×5,150×3,350mm |
