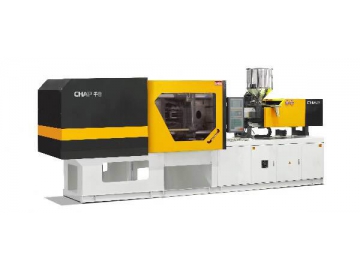

CMH1250 Sandwich Co-Injection Molding Machine
Request a Quote
This product has been discontinued and removed from our shelves.
Technical Specifications of Sandwich Co-Injection Molding Machine | Description | Unit | CMH1250 | |
| Injection Unit | Injection 1 | Injection 2 | |
| Screw diameter | mm | 40 | 30 |
| Screw length-diameter ratio | L/D | 20.5 | 19.3 |
| Theoretical injection capacity | cm3 | 154 | 82 |
| Injection weight(PS) | g | 140 | 74 |
| Injection pressure | Mpa | 169 | 227 |
| Injection rate | g/s | 70 | 55 |
| Plasticizing capacity(PS) | g/s | 17 | 9 |
| Screw rotational speed | rpm | 0~175 | 0~190 |
| Clamping Unit | |||
| Clamping force | KN | 1250 | |
| Moving mould distance | mm | 355 | |
| Tie bar spacing | mm | 410 355 | |
| Max. mould thickness | mm | 430 | |
| Min. mould thickness | mm | 130 | |
| Ejector stroke | mm | 125 | |
| Ejector force | KN | 32 | |
| Ejector bar amount | PC | 5 | |
| Other Unit | |||
| Max. pump pressure | MPa | 16 | |
| Pump motor power | KW | 13 | |
| Heating power | KW | 7.2+3.6 | |
| External dimension(L×W×H) | mm | 4700×1160×1700 | |
| Machine weight | kg | 3600 | |
| Material cylinder capacity | Liter | 25+25 | |
| Oil tank capacity | Liter | 107 | |
As a professional sandwich co-injection molding machine manufacturer in China, CHAP is ISO9001 certified due to its production and operation in rigid compliance with international standards. With superior quality, reliable performance, and high efficiency, our products, such as hydraulic two-platen plastic injection molding machine, custom rubber machine, plate rubber vulcanizing machine, and more, are well received by global customers in South America, Southeast Asia, East Asia, and Middle East, etc. If you have any needs about our products, please contact us via email or contact address available on this website. The staff at CHAP is ready to serve you.
