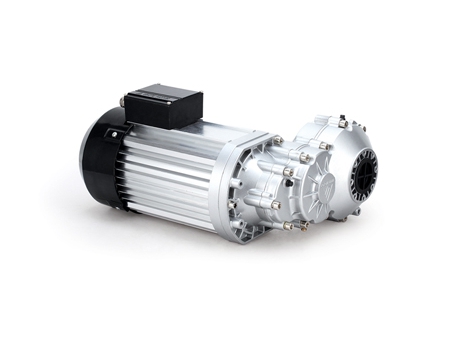

Brushless PMDC Motor TF102AH Series
Your Motion
Applications: E-Tricycle, electric cargo trike and other electric vehicles.
The brushless PMDC motor is made with high quality materials, which makes it a reliable and durable vehicle component. It is designed and manufactured with high-end technologies that make it work with low noise, and high efficiency. This electric motor is coming into prominence with a low starting current and a large starting torque.
Technical Specifications
| Rated Power (W) | 350 | 500 | 750 | 1000 |
| Max. Power (W) | 700 | 1000 | 1500 | 2000 |
| Rated Voltage(V) | 24/36 | 36/48 | 48/60 | 48/60 |
| No-load Current(A) | ≤3.5/3.0 | ≤3.5/3.0 | ≤3.5/3.0 | ≤4.0/3.5 |
| No-load Revolution(RPM) | 3250 | 3150 | 2800 | 3050 |
| Rated Torque (N•m) | 1.2 | 1.7 | 3.5 | 4.7 |
| Max. Torque (N•m) | 6.5 | 10.0 | 13.0 | 18.0 |
| Rated Revolution(RPM) | 2900 | 2800 | 2800 | 2700 |
| Rated Current(A) | 19.5/13 | 18.5/13.5 | 28/21 | 28/23 |
| Rated Efficiency (%) | ≥75 | ≥75 | ≥75 | ≥75 |
| Working Cycle (min.) | S1 | S1 | S1 | S1 |
| Insulation Class | F | F | F | F |
| Protection Level | IP55 | IP55 | IP55 | IP55 |
Note: we can customize any BLDC motors according to your specific application.
