1310nm 1mw-4mw DFB Pigtail Laser Diodes Manufacturer

1310nm 1mw-4mw DFB Pigtail Laser Diodes

: http://laserdiodedevice.com/2-3-1-1310nm-1mw-4mw-dfb-pigtailed-laser-modules.html

The 1310nm 1mw-4mw DFB Pigtail Laser Diodes have an excellent simulation performance due to the use of a DFB chip. The output power is controlled within 1 to 4 mw based on customer needs, which makes this laser module ideal for use in CATV, digital, and analog signal transmissions.

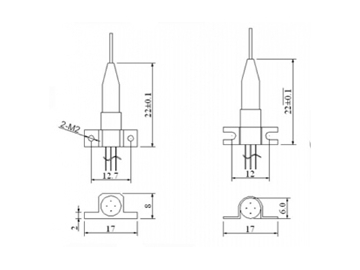

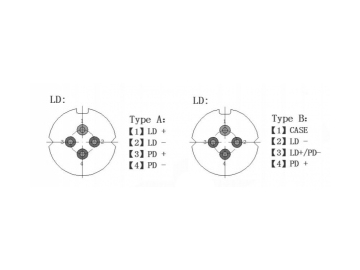

Absolute Maximum Ratings

Parameter	Symbol	Min.	Max.	Unit	Test Condition
Storage Temperature	Tstg	-40	100	°C	-
Operating Temperature	Top	-40	85	°C	-
Forward Current(LD)	If(LD)		150	mA	CW
Reverse Voltage(LD)	Vr(PD)		2	V	CW
Forward Current(PD)	If(LD)		2	mA
Reverse Voltage(PD)	Vr(PD)		15	V	cw
Soldering Temp	-	-	260	°C	-
Soldering Time	-	-	10	s	s

Optical & Electrical Characteristics

Parameter	Symbol	Min.	Typ.	Max.	Unit	Test Condition
Rated Power	Po	1	-	4	mW	Ith+20mA
Slope Efficiency	SE			0.2	mW/mA
Threshold Current	Ith		10	15	mA	-
Forward Voltage Drop	Vop	-	1.0	1.2	V	CW, Ith+20mA
Cent Wavelength	λc	1300	1310	1320	nm	-
Spectrum Width(-3dB)	Δλ	-	0.5	1	nm	Ith+20mA
Side-mode Suppression Ratio	SMSR	35		-	dB	-
Bandwidth	Bw	2.5			GHz
Monitor Current	Im	100		900	uA	CW, Ith+20mA
Dark Current of Monitor	Id	-	-	100	nA	5V
Optical Isolation(Single stage)	ISO	35	40	-	dB
Optical Isolation(Double stage)	ISO	45	50	-	dB
Return loss	RL			-45	dB
Analog Characteristic index
Relative Intensity Noise	RIN	-	-155	-150	dB/Hz	-
RF Bandpass Flatness	BF		±1.5		dB
Third-order Distortion	IMD3	-	-55	-	dBc
Carrier Noise Ratio	CNR	51	-	-	dB	Note 1
Composite Second Order	CSO	-	-	-57	dBc
Composite Triple Beat	CTB	-	-	-65	dBc
