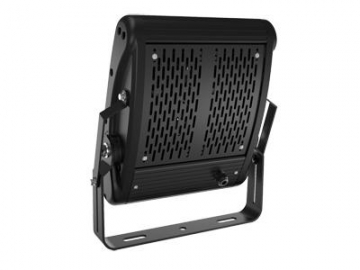

80 Watt Aluminum Fixture LED Flood Light
Selection
MF-FL-80S LED flood light
Optical Data | LED TYPE | LED Power | LED QTY | System Efficacy | luminous FIUX | System Efficiency | |
| Philips | 80w±4% | 120PCS | 160lM/W(CCT=500K) | 15400M/W(CCT=500K) | 90% |
- Power Supply: Meanwell
- Input Voltage: 90-305V (HLG/ELG) 180-528V (HVG) AC50/60Hz
- Output Voltage:36V±1.0%
- Output Current: 3.0A
- Power Efficiency :> 93%
- Total Harmonic Distortion :< 15%
- Junction Temperature (Tj):< 75℃(Ta=30℃)
- Ingress Protection: IP67
- Beam Angle:30°,60°,90°,120°60×135°,85°×135°
- CCT: 2200-6500K
- CRI :> 70Ra/> 80Ra
- Operating Temperature:-30TO+45℃
- Storage Temperature:-40TO+45℃
- Operating Humidity: 15~90%RH
- Life Span:> 50000hrs(Ta=30℃@L70)
- Fixture Material: Aluminum Alloy
- N.W/G.W :5.6/6.5±0.3kg
- Package Size:450×390×170mm
