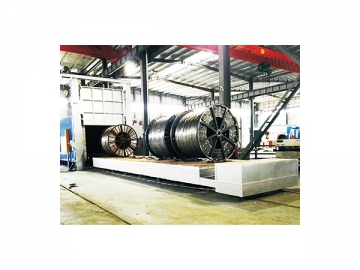

RT2 Series Industrial Aging Furnace
The RT2 series industrial aging furnace uses a car feeding structure, making it suitable for heat treatments including normalizing, annealing, and quenching in oxidizing atmospheres for general metal parts. It is particularly useful for annealing large castings, steel strips, and coils.
Parameters
| Model | RT2-65-9 | RT2-105-9 | RT2-180-9 | RT2-320-9 | |
| Rated power (KW) | 65 | 105 | 180 | 320 | |
| Rated temperature (℃) | 950 | 950 | 950 | 950 | |
| Wiring method of heating element | Y | Y | YY | YY.Y | |
| Chamber size | Length (mm) | 1100 | 1500 | 2100 | 3000 |
| Width (mm) | 550 | 800 | 1050 | 1350 | |
| Height (mm) | 450 | 600 | 750 | 950 | |
| Max. Loading (kg) | 1000 | 2500 | 5000 | 12000 | |
| Dimensions | Length (mm) | 3060 | 3560 | 4270 | 5370 |
| Width (mm) | 1582 | 1832 | 2600 | 3100 | |
| Height (mm) | 2480 | 2860 | 3060 | 3530 | |
