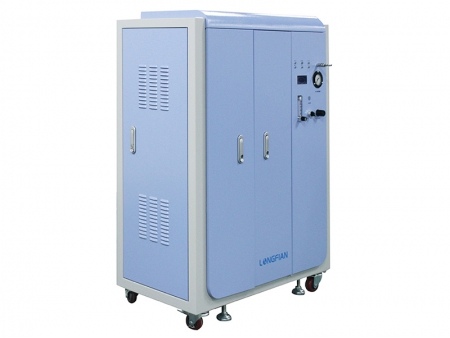

Self-contained Oxygen Concentrator with Air Vacuum
| General | Model | JAY-2A | |
| Type 30 | Type 50 | ||
| Dimension | 800*440*660 | 720*630*740 | |
| Weight | 110kg | 120kg | |
| Power Supply | Mains | 220V AC, 50/60 Hz | 220V AC, 50/60 Hz |
| Power consumption | 1200W | 1600W | |
| Switch-on current | 7.0 A | 7.0A | |
| Output data | Output Pressure | 0.35Mpa | 0.40Mpa |
| Oxygen Flow | Max. 10l/m | Max. 10l/m | |
| Compressor Air Flow | Max.30l/m | Max. 50l/m | |
| Oxygen Concentration | 93%±3% | 93%±3% | |
| Vacuum | 0-0.7 bar | 0-0.7 bar | |
| Noise Level | ≤60 dB (A) | ≤60 dB (A) | |
| Monitoring | Pressure Gauge | AIR, O2, VAC | AIR, O2, VAC |
| Supervision | Alarms (Visual, Audible) | 1. Low purity; 2. High temperature; 3. High & low pressure; 4. Power failure | 1. Low purity; 2. High temperature; 3. High & low pressure; 4. Power failure |
- Features
- The oxygen concentrator comes with a Thomas compressor.
- 4 bar pressure compatible with ventilator or anaesthesia machine;
- Adopts PSA technology for safe, convenient and economical operation.
- Specially designed for ICU and operating room.
