Single-sided Square Indexable Drill Inserts for Shallow Hole Drilling

Single-sided Square Indexable Drill Inserts for Shallow Hole Drilling
Single-sided Square Indexable Drill Inserts for Shallow Hole Drilling
: http://carbide-toolings.com/2-3-1-single-sided-square-indexable-drill-inserts.html

These single-sided square inserts are designed with high cutting edge strength, and mainly used for high-efficiency drilling applications on steel.

Request a quote
Explore Our Catalogue of Carbide Indexable Drill Inserts

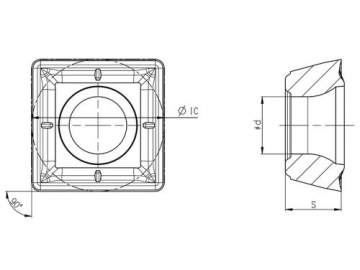

Code ØIC S d r
SPMG050204
 5 2.38 2.5 0.4
SPMG060204
 6 2.38 2.61 0.4
SPMG07T308
 7.94 3.97 2.85 0.8
SPMG090408
 9.8 4.3 4.05 0.8
SPMG110408
 11.5 4.8 4.45 0.8
SPMG140512
 14.3 5.2 5.75 1.2
  • Tags:
  • shallow hole drilling inserts
  • indexable drill bit inserts
  • quad-drill insert
  • indexable tooling
Related products

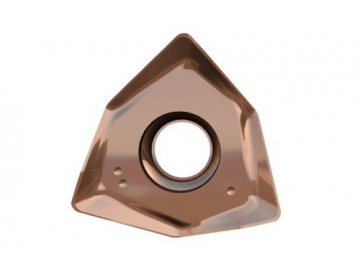

Double-sided Trigon Inserts for Shoulder Milling
Double-sided Trigon Inserts for Shoulder Milling

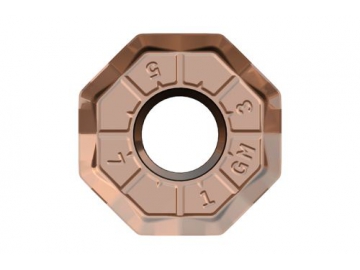

Double-sided Octagonal Carbide Inserts for Face Milling
Double-sided Octagonal Carbide Inserts for Face Milling

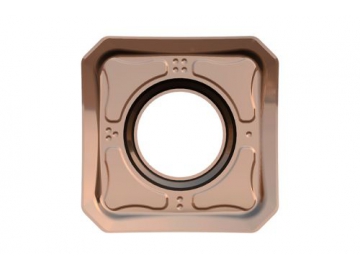

Double-sided Square Carbide Inserts for Face Milling (with 45°/75°/88° Cutting Edge Angle)
