Non-Woven Interleaf Flanged Flap Wheels Manufacturer

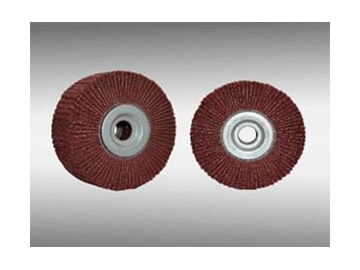

Non-Woven Interleaf Flanged Flap Wheels

: http://indus-abrasives.com/2-3-2-nonwoven-interleaf-flap-wheels.html

Joysun Combi interleaf non-woven flanged flap wheels are manufactured by utilizing enhanced production techniques of combining professional grade aluminum oxide abrasive cloth and X and J weight backing cloth, which have been source from well-known brands.

These abrasive flap wheels feature a flexible structure that, providing a softer and more flexible operation. This makes them suitable for de-burring, creating decorative finishes, and rust removal among others. They are perfect for finishing materials and products made from carbon steel, stainless steel, high temperature resistant alloys and all ferrous and non-ferrous metals.

JAC-K727RF Non-Woven Interleaf Flanged Flap Wheels

Availability

Product Code	JAC-K727RF	JAC-K728SF	JAC-K729GF
Abrasive Grains	Refined Alumina Oxide	Refined Alumina Oxide	Refined Alumina Oxide
Backing Cloth Type	X-Flex cotton/Non-woven	X-Flex cotton/Non-woven	X-Flex cotton/Non-woven
Flap Mounted Version	Interleaved	Interleaved	Interleaved
Fasten Type Of Steel Flange	U Type Slot	U Type Slot	U Type Slot

BRITSH SIZE	METRIC SIZE	OPT	MAX	STD	Grit	PART #	PART #	PART #
( D x W x H )	( D x W x H )	RPM	RPM	PACK	Grit	PART #	PART #	PART #
3-1/2" x 2" x 3/8"	90 x 50 x 10 mm	5,200	12,000	10	CRS+ 50	72207	72208	72209
					CRS+ 60	72210	72211	72212
					MED+80	72223	72224	72225
					MED+120	72236	72237	72238
					FIN+180	72249	72240	72241
					VFN+240	72252	72253	72254
					VFN+320	72265	72266	72267
4" x 2" x 5/8"	100 x 50 x 16 mm	5,200	12,000	10	CRS+ 50	72278	72279	72270
					CRS+ 60	72281	72282	72283
					MED+80	72294	72295	72296
					MED+120	72307	72308	72309
					FIN+180	72310	72311	72312
					VFN+240	72323	72324	72325
					VFN+320	72336	72337	72338
6" x 1" x 1"	150 x 25 x 25 mm	3,000	6,100	10	CRS+ 50	72349	72340	72341
					CRS+ 60	72352	72353	72354
					MED+80	72365	72366	72367
					MED+120	72378	72379	72370
					FIN+180	72381	72382	72383
					VFN+240	72394	72395	72396
					VFN+320	72407	72408	72409
6" x 2" x 1"	150 x 50 x 25 mm	3,000	6,100	10	CRS+ 50	72410	72411	72412
					CRS+ 60	72423	72424	72425
					MED+80	72436	72437	72438
					MED+120	72449	72440	72441
					FIN+180	72452	72453	72454
					VFN+240	72465	72466	72467
					VFN+320	72478	72479	72470
6" x 3" x 1"	150 x 75 x 25 mm	3,000	6,100	10	CRS+ 50	72481	72482	72483
					CRS+ 60	72494	72495	72496
					MED+80	72507	72508	72509
					MED+120	72610	72611	72612
					FIN+180	72623	72624	72625
					VFN+240	72636	72637	72638
					VFN+320	72649	72640	72641
6-1/2" x 1" x 2-1/8"	165 x 25 x 54 mm	2,700	5,300	10	CRS+ 50	72652	72653	72654
					CRS+ 60	72665	72666	72667
					MED+80	72678	72679	72670
					MED+120	72681	72682	72683
					FIN+180	72694	72695	72696
					VFN+240	72707	72708	72709
					VFN+320	72710	72711	72712
6-1/2" x 2" x 2-1/8"	165 x 50 x 54 mm	2,700	5,300	10	CRS+ 50	72723	72724	72725
					CRS+ 60	72736	72737	72738
					MED+80	72749	72740	72741
					MED+120	72752	72753	72754
					FIN+180	72765	72766	72767
					VFN+240	72778	72779	72770
					VFN+320	72781	72782	72783
8" x 2" x 1"	200 x 50 x 25 mm	2,400	4,500	10	CRS+ 50	72794	72795	72796
					CRS+ 60	72807	72808	72809
					MED+80	72810	72811	72812
					MED+120	72823	72824	72825
					FIN+180	72836	72837	72838
					VFN+240	72849	72840	72841
					VFN+320	72852	72853	72854
8" x 3" x 1"	200 x 50 x 25 mm	2,400	4,500	10	CRS+ 50	72865	72866	72867
					CRS+ 60	72878	72879	72870
					MED+80	72881	72882	72883
					MED+120	72894	72895	72896
					FIN+180	72907	72908	72909
					VFN+240	72910	72911	72912
					VFN+320	72923	72924	72925
12" x 1" x 5"	300 x 25 x125 mm	1,700	3,000	10	CRS+ 50	72936	72937	72938
					CRS+ 60	72949	73040	73041
					MED+80	73052	73053	73054
					MED+120	73065	73066	73067
					FIN+180	73078	73079	73070
					VFN+240	73081	73082	73083
					VFN+320	73094	73095	73096
