1550nm 1mw-3mw DFB Pigtail Laser Diode Module
The 1550nm 1mw-3mw DFB pigtail laser diode module has an excellent simulation performance due to the use of a DFB chip. The output power is controlled between 1 to 3 mw based on customer needs, making it ideal for use in CATV, digital and analog signal transmission.

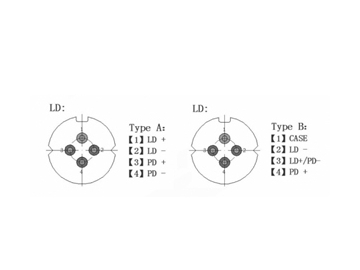

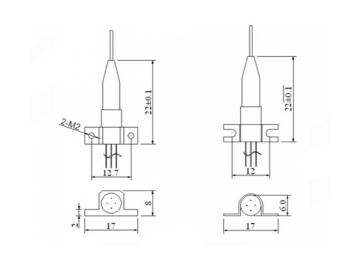

Absolute Maximum Ratings| Parameter | Symbol | Min. | Max. | Unit | Test Condition |
| Storage Temperature | Tstg | -40 | 100 | °C | - |
| Operating Temperature | Top | -40 | 85 | °C | - |
| Forward Current(LD) | If(LD) | | 150 | mA | |
| Reverse Voltage(LD) | Vr(PD) | | 2 | V | CW cw |
| Forward Current(PD) | If(LD) | | 2 | mA | |
| Reverse VoItage(PD) | Vr(PD) | | 15 | V | |
| Soldering Temp | - | - | 260 | °C | - s |
| Soldering Time | - | - | 10 | s |
| Parameter | Symbol | Min. | Typ. | Max. | Unit | Test Condition |
| Rated Power | Po | 6 | 8 | 10 | mW | Ith+40mA |
| Slope Efficiency | SE | | 0.15 | 0.2 | mW/mA | |
| Threshold Current | Ith | | 10 | 15 | mA | - |
| Operating Current | Iop | | 50 | 70 | mA | |
| Forward Voltage Drop | Vop | - | 1.0 | 1.2 | V | CW, Ith+40mA |
| Cent Wavelength | λc | 1540 | 1550 | 1560 | nm | - |
| Spectrum Width(-3dB) | Δλ | - | 0.5 | 1 | nm | Ith+40mA |
| Side-mode Suppression Ratio | SMSR | 35 | | - | dB | - |
| Bandwidth | Bw | | 2.5 | | GHz | |
| Monitor Current | Im | 100 | | 1200 | uA | CW, Ith+40mA |
| Dark Current of Monitor | Id | - | - | 100 | nA | 5V |
| Optical Isolation(Single stage) | ISO | 35 | 40 | - | dB | |
| Optical Isolation(Double stage) | ISO | 45 | 50 | - | dB | |
| Return loss | RL | | | -45 | dB | |
| Analog Characteristic index | ||||||
| Relative Intensity Noise | RIN | - | -155 | -150 | dB/Hz | - |
| RF Bandpass Flatness | BF | | ±1.5 | | dB | |
| Third-order Distortion | IMD3 | - | -55 | - | dBc | |
| Carrier Noise Ratio | CNR | 51 | - | - | dB | Note 1 |
| Composite Second Order | CSO | - | - | -57 | dBc | |
| Composite Triple Beat | CTB | - | - | -65 | dBc | |
Note :
① If=Iop, Optical Modulation, Index=3.2%/channel (minimum),60 PAL-D unmodulated carries (47 to 550MHz), 10km singlemode fiber, -1dBm received power, Receiver responsivity=0.85A/W.
② If=Iop, Optical Modulation Index=3.2%/channel (minimum), CNR, CSO, CTB tested value at worst case over all test frequencies. NTSC 120ch., 10km singlemode fiber, -1dBm received power, Receiver responsivity=0.85A/W
