Cuplock Diagonal in Scaffolding Cuplock System

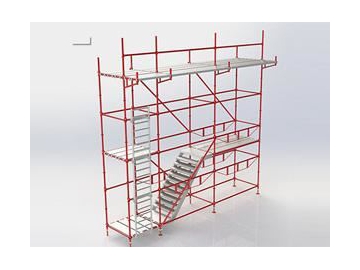

Insert the swivel ledger blades at both ends of the cuplock diagonal into the bottom cup of cuplock standard. Press and rotate the top cups, and use the stop pin to fix the top cups. Connecting the cuplock diagonal with the vertical cuplock pole is convenient, forming a complete cuplock system with the cuplock standard and horizontal components. The diagonal brace provides reinforcement and it can be used as a handrail. The cuplock diagonal is hot-dip galvanized.
MaterialQ235 steel
Parameters| Item No. | Description | Weight (KGS) | Weight (LBS) | Package Unit (Pcs) |
| CCB40 | Cuplock Swivel Clamp Brace 4'/1.22m | 7.4 | 16.3 | 1000 |
| CCB50 | Cuplock Swivel Clamp Brace 5'/1.52m | 8.5 | 18.72 | 1000 |
| CCB70 | Cuplock Swivel Clamp Brace 7'/2.13m | 10.06 | 22.16 | 1000 |
| CCB80 | Cuplock Swivel Clamp Brace 8'/2.44m | 10.4 | 22.91 | 1000 |
| CCB82 | Cuplock Swivel Clamp Brace 8'2"/2.50m | 10.6 | 23.35 | 1000 |
| CCB90 | Cuplock Swivel Clamp Brace 9'/2.74m | 11.2 | 24.67 | 1000 |
| CCB100 | Cuplock Swivel Clamp Brace 10'/3.05m | 11.8 | 25.99 | 1000 |
