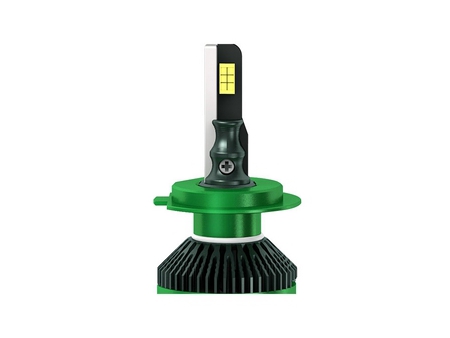

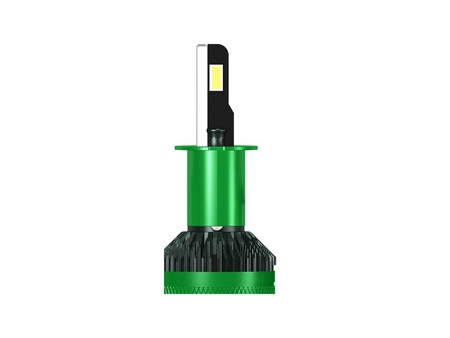

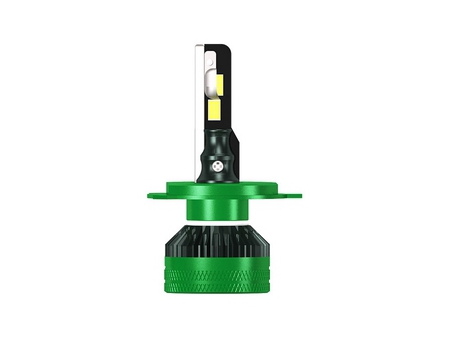

F6S Series LED Headlight Bulb
Request a Quote
Features
- The heat sink has a diameter of 32mm and a height of 30.5mm, with a power rating of 40W for optimal cooling performance.
- The bulb features 6*45 3570 LED chips, a single heat pipe for conduction, and S-shaped cooling fins made of high-quality AL6063 material (European standard) for better heat dissipation.
- Double-sided copper base plates (1.5mm) are tightly pressed with aluminum components and perfectly welded with the superconducting heat pipe, improving heat conduction. It also has a built-in driver with a smart temperature control system to protect the LED chips.
- The sleek and small design delivers powerful performance. It also includes EMC and decoding functions and is protected by patents.
Specification
| Series | F6S | |||||||
| Model | F6S H1 | F6S H3 | F6S H4 | F6S H7 | F6S H11 | F6S 9005 | F6S 9006 | F6S 9012 |
| Voltage (V) | DC9-100 | |||||||
| Power (W) | 40 | |||||||
| Luminous Flux (lm) | 3200 | |||||||
| Color temperature (K) | 6500 | |||||||
| Driver | Built-in driver | |||||||
| Fan | Yes | |||||||
