Horizontal Plastic Cup Filling and Sealing Machine
Applications of Horizontal Plastic Cup Filling and Sealing Machine
The horizontal plastic cup filling and sealing machine is a kind of liquid & semi-viscous material packaging equipment for pure milk, yogurt, milk beverage, soya-bean milk, fruit juice, ice cream, seasoning, everyday chemical, among others.
Features of Horizontal Plastic Cup Filling and Sealing Machine

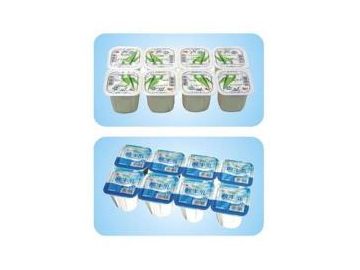

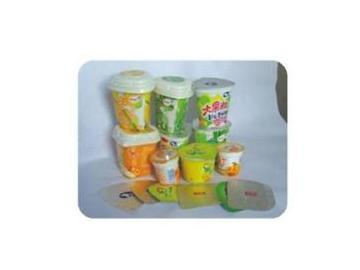

1. Suitable for pre-made round, square and triangular plastic cup, the linear stepping filling machine is applicable for sealing cups using aluminium foil or paper.
2. The horizontal plastic cup filling and sealing machine can complete cup feeding, liquid filling, cap sucking, cup unloading, and cup conveying, automatically.
3. The standard horizontal liquid packaging machine can be used for the filling volume of 50-500ml per cup. The special filling system and the CIP cleaning system satisfy strict sanitary requirement.
| Model | SKB-4D | SKB-6D | SKB-8D | SKB-10D |
| Production Speed | 30-50 cups/min | 40-75 cups/min | 50-100 cups/min | 60-120 cups/min |
| Power | 3.5kW | 5.5kW | 7kW | 9kW |
| Air Compression Ratio | 0.4m³/min | 0.6m³/min | 0.9m³/min | 1.2m³/min |
| Machine Weight | 800kg | 1000kg | 1300kg | 1600kg |
