PET/Aluminum/CPP Laminates

This PET/AL/CPP laminates feature outstanding sealing and barrier properties to protect your product against oxygen, moisture and UV exposure. This high barrier metallizing film is also used as normal temperature packaging of liquid products or packaging of infusion bags, and other medical products.

Common Structures

Key Features

This PET/Aluminum/CPP laminates feature an excellent barrier property to protect your goods against oxidation and spoiling.
Excellent antimicrobial effect.
Excellent mechanical properties and excellent rigidity, hardness and toughness.
This PET/Aluminum/CPP laminates feature an excellent shading performance, the reflective rate can up to 95%.
It has an excellent high temperature resistance and low temperature resistance, it will not be out of shape under -73℃~371℃.
It has good voltage resistance and electronic insulation properties.

Parameter

Water transfer rate≤0.5g/(㎡·24h)
Oxygen transfer rate≤0.5cm³/（㎡·24h·0.1Mpa）
Peel strength between AL layer and PE layer ≥2.5N/15mm
Heating sealing strentgh≥12N/15mm
Residual quantity of solvent≤5.0mg/㎡

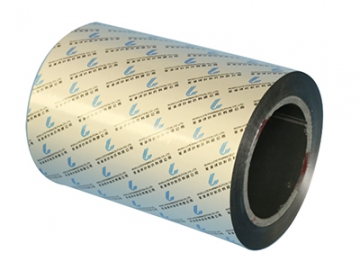

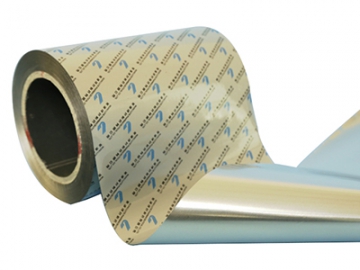

Sample display

HQ is a professional pharmaceuticals flexible packaging manufacturer, we specialize in developing and providing packaging materials according to your product features and packaging requirement, such as laminated films and pouches, matellized films, blister pack materials, etc.If you are looking for a suitable packaging solution, HQ will be your best choice., Here is our common packaging product, you can also click the following link to know more information.
