Rotary Drilling Rig SWDM200
  • Overall height: 21.2m
  • Max. drilling diameter: 1.8m
  • Max. drilling depth: 64m

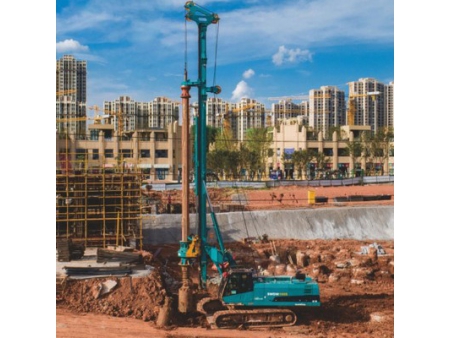

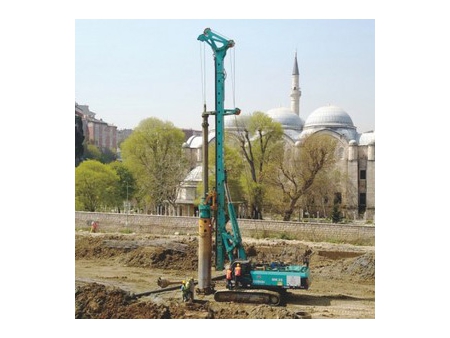

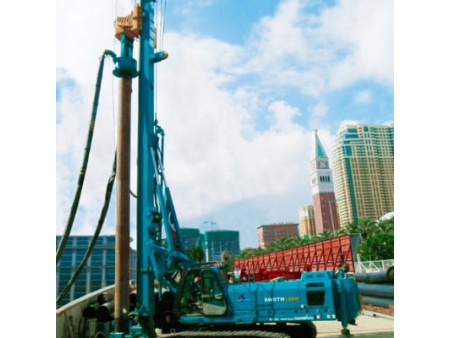

Suitable for civil construction and piling projects;

Main winch features high pull force and speed, the rotation speed of rotary head is high, providing excellent working efficiency;

Single-layer winding of steel rope for minimal rope wear, increasing 50% of rope life;

Heavy-duty retractable crawler undercarriage coupled with double cylinder luffing mechanism ensures the high stability and reliability;

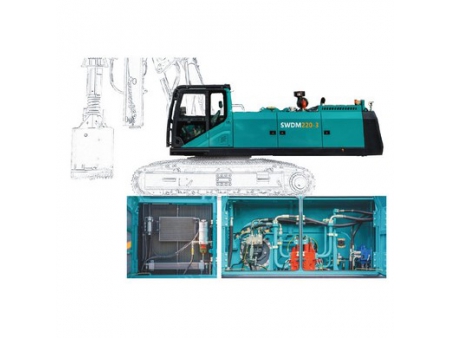

Hidden type outrigger leg is located at bottom part of the mast, not only can enhance the stability during drilling but also facilitate daily maintenance of undercarriage;

Fault self-diagnosis and alarm, real-time display of drilling parameters, control unit with one-button locking, providing guaranteed operation safety;

Through mobile phone APP (cloud platform), operating data can be synchronously transmitted and the equipment status can be monitored via monitoring camera at any time; Other assistance systems like audible / visible alarm and emergency stop button are available to assist operators in convenient and safe control for drilling process;

Wireless remote control is optional to achieve remote control of travelling and luffing, keeping operator safe while giving a wider visibility for special working conditions;

Wide functional expansibility, can achieve multiple functions in one machine, e.g. continuous flight auger (CFA) pile construction, belled pile construction, large-diameter variable-section pile construction; Can be retrofitted to a DTH drilling rig with swivel joint to execute ultra large diameter deep hole reverse circulation drilling;

Technical Specifications
Drill hole Max. drilling diameter mm 1800
Max. drilling depth m 64/51
Engine Brand Cummins
Model QSB6.7-C260
Power kW@rpm 194@2200
Rotary head Max. torque kN.m 200
Rotation speed rpm 6-35
High-speed removal of drill cuttings (optional) rpm 70
Crowd system Max. crowd pressure kN 210
Max. crowd pull kN 210
Max. stroke mm 5000
Main winch Max. line pull kN 190
Max. line speed m/min 75
Auxiliary winch Max. line pull kN 80
Max. line speed m/min 55
Mast inclination Lateral ° ±5
Forward/backward ° 5
Undercarriage Crawler width mm 700
Crawler width (extended) mm 2900〜4200
Crawler length mm 5145
Complete machine Working height mm 21275
Working weight t 65

Statement of technical specification: all parameters above are subject to change due to the continuous improvement of the product, please to get the latest info updates.
