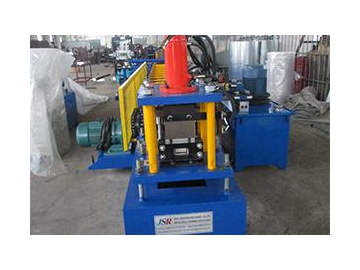

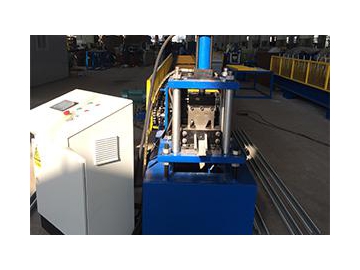

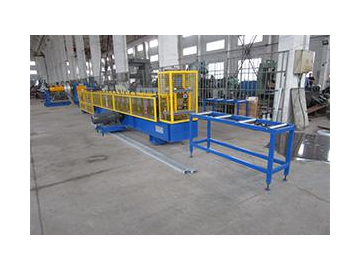

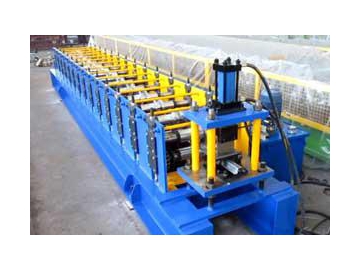

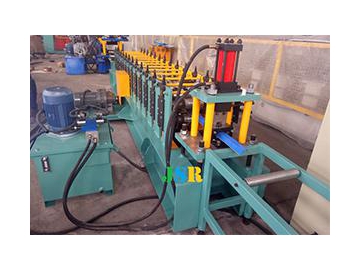

Roll Forming Line for Stud and Track

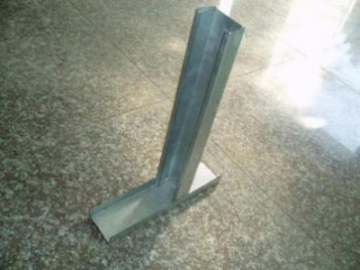

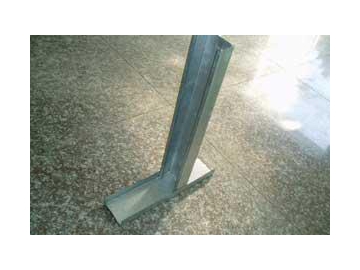

The roll forming machine for stud and track production is features a highest forming speed of 20m/min. Stud and track produced by our roll former are within the thickness of materials 0.3mm-0.6mm. In addition, we can customize roll forming line for you drywall stud &track production depending on your requirements on material.
Specifications| Machine Specifications | |
| Weight | About 3500kgs |
| Size | About 6m × 1.6m × 1.5m (length× width× height) |
| Color | Main color: blue |
| Warning color: yellow | |
| Suitable Raw Material | |
| Material | Galvanized steel coils |
| Thickness | 0.3-0.6mm |
| Coil width | 153mm and 175mm |
| Yield strength | 235Mpa |
| Main Technical Parameters | |
| Quantity of forming roll stations | 12-14 |
| Diameter of forming roller shafts | 60mm |
| Roll forming speed | 15-20m/min |
| Forming roller material | No.45 steel, with chrome plating treatment |
| Cutter material | CR12 mold steel, with quench heat treatment |
| Control system | PLC and converter |
| Electric power requirement | Main motor power: 5.5kw |
| Hydraulic unit motor power: 3kw | |
| Electric voltage | According to customer's requirement |
