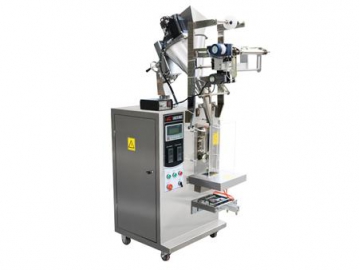

Vertical Form Fill Seal Machine, MK-LS10 Counting Packaging Machinery
The MK-LS10 vertical form fill seal machine utilizes 10 vibration bowl feeders so that it offers a mixed counting packaging of up to 10 materials, including hardware screws, electronic elements, bicycle accessories and other irregular products. The stable and durable vibration bowl, when paired with a KEYKENCE counting fiber, results in a counting accuracy of 1/1000-1/3000. Controlled by an automatic frequency controller, the vibration frequency of the vibration bowl automatically adjusts with the material weight, thus ensuring smooth conveying to enhance the weighing accuracy.
Packaging materials OPP/CPP、PET/PE and other heat sealable film, PE film

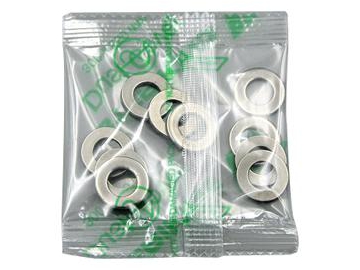

Bag styles- Back seam bag

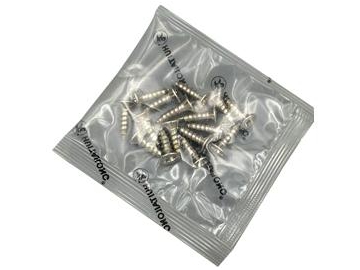

- 3-side seal

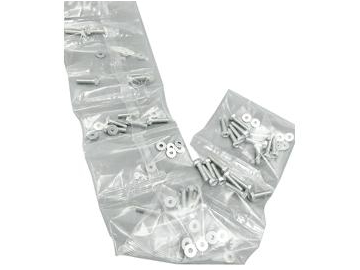

- Strip sachets
- Type: MK-LS10
- Max film width: 420mm (optional 220, 420, 520, 620, 720)
- Voltage: 110V/220V/380V 50HZ/60HZ
- Power: 5.5KW
- Packing speed: 5-30bags/min (depending on packaged products)
- Bag size: L:60-300mm W:80-200mm
- Film thickness: 0.04-0.08mm
- Air consumption: 0.6m³/min 0.6-0.8MPa
- Weight: 1550kg
- Overall size: 7500x1400x1750mm (depending on packaged products)
- Storage hopper
- Finished package conveyor
- Weight checker
- printer
