Carding Machine for Fiber Disentangling (Single Cylinder Single Doffer) Manufacturer

Carding Machine for Fiber Disentangling (Single Cylinder Single Doffer)

: http://nonwovenlines.com/2-4-1-single-cylinder-single-doffer.html

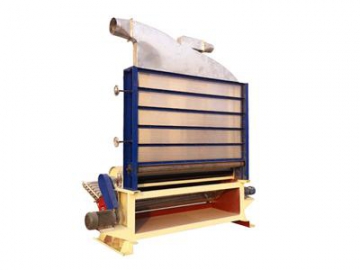

This type of carding machine manufactured by us adopts the design of single cylinder with diameter of 1020mm and single doffer with diameter of 635mm. The output speed can reach 55m/min at most. The capacity of single cylinder single doffer carding machine is relatively smaller than other type of carding machine due to the design of single cylinder and single doffer. Therefore, this single cylinder single doffer carding machine is suitable for those clients who strictly control the cost with low capacity.

Basic parameters of this single cylinder single doffer carding machine are listed below, contact us for more details：

Product	Single cylinder single doffer carding machine
Working Width(mm)	1520mm
Output Speed	20-55m/min
Doffer Diameter	492mm*1
Cylinder Diameter	850mm*1
Carding Type：	Cutting die or roller
Fiber Feeding	Controlled by the sensor from carding machine
Power	7.5kw
Capacity	60-90kg/h

The feed inlet can be opened for observation
The single cylinder single doffer carding machine adopts fully enclosed design to protect the operator.
