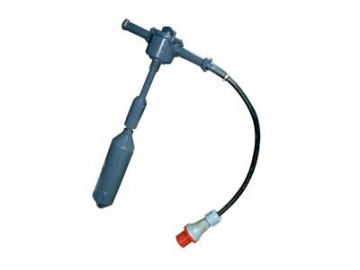

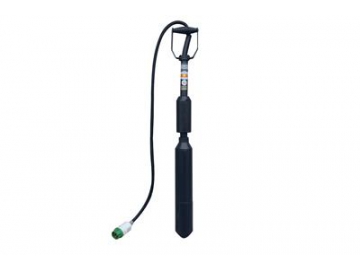

Rigid Vibrator Shaft and Vibrator Head
- ZDN85 Rigid shaft concrete vibrator
- ZDN100 Rigid shaft concrete vibrator
- ZDN125 Rigid shaft concrete vibrator
Coupled through plugs and sockets with the mechanical frequency converter, the overall structure of ZDN series vibrating poker is compact and sleek.
The poker head diameter of the concrete vibrator is usually longer than 85mm, which is suitable for some large engineering jobs such as water conservancy projects and hydropower projects.
Optional Models
| Model | Power (kW) | Poker head diameter (mm) | Working length (mm) | Vibration frequency (Hz) | Amplitude (half value) (mm) | Amplitude (total value) (mm) | Centrifugal force (kN) | Overall dimension L×W×H(mm) | Weight (kg) | Adaptive power supply |
| ZDN85 | 1 | 85 | 480 | 197 | 0.8 | 1.6 | 6.6 | 1200×122 ×85 | 15 | 48V 3~ 200Hz |
| ZDN100 | 1.85 | 100 | 525 | 148 | 1.6 | 3.2 | 13 | 1100×122 ×100 | 22 | 48V 3~ 150Hz |
| ZDN125 | 2.5 | 125 | 510 | 148 | 1.7 | 3.4 | 20 | 1080×480 ×150 | 38 | 48V 3~ 150Hz |
