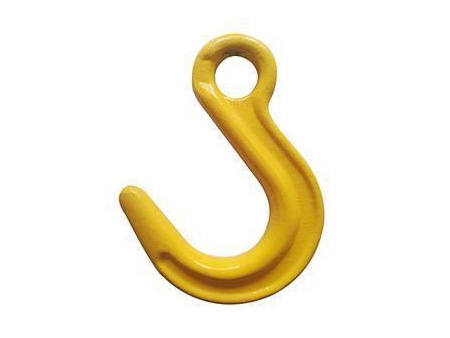

G80 Eye Foundry Hook

G80 Eye Foundry Hook
G80 Eye Foundry Hook
Request a Quote
Technical Parameters

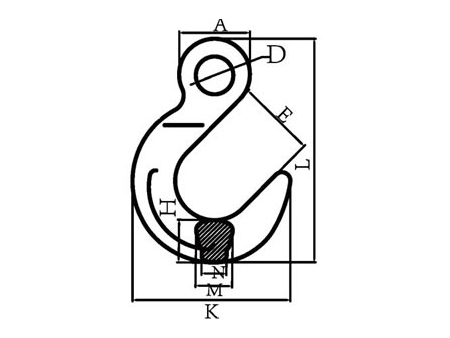

ITEMNO WEIGHT/KG Working Load Limit (t) Breaking Load (t) E±1.2 A±1 D±1 H±1 M±1 N±O.5 K±2 L±2
8-SLROI5-7/8 1.09 2 8 63.5 39 18 31 25.4 18 120 163
8-SLROI5-1O 2.04 3.15 12.6 76 50.8 22 38 32.6 23 146 200
8-SLROI5-13 3.22 5.3 21.2 89 63.5 27 44.5 38.1 27 171 238
8-SLROI5-16 5.53 8 32 102 76 32 52 46 32 198 278
8-SLROI5-20 8.75 12.5 50 114.5 89 38 65 55 39 232 325
8-SLROI5-22 11.93 15 60 127.5 102 45 69 57 40 256 361
8-SLROI 5-26 16.8 21.2 84.8 140 126 67.5 77 66 45 283 402
8-SLROI5-32 26.6 31.5 126 153.5 151.5 81.5 97.5 80 58 327 461
