Silicon Carbide Satin Finishing Wheels Manufacturer

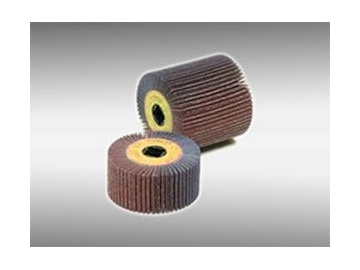

Silicon Carbide Satin Finishing Wheels

: http://indus-abrasives.com/2-4-3-4-linear-satin-grinding-drums.html

Availability

Product Code	JAC-C836KS	JAC-C837RS	JAC-C838VS
Abrasive Grains	Silicon Carbide	Silicon Carbide	Silicon Carbide
Backing Cloth Type	X-weigth Ply cotton	X-weigth Ply cotton	X-weigth Ply cotton
Flaps Fitted Version	Single	Single	Single
Wheel Center Hole Type	Keyway Hole / Threaded Hole	Keyway Hole / Threaded Hole	Keyway Hole / Threaded Hole

SIZE	SIZE	OPT	MAX	GRIT	STD	PART #	PART #	PART #	PART #	PART #	PART #
( D x W x H )	( D x W x H )	RPM	RPM	GRIT	PACK	PART #	PART #	PART #	PART #	PART #	PART #
4" x 2" x 3/4"	100 x 50 x 19 mm	2,000	5,700	40	10	83306		83307		83308
				50		83319		83310		83311
				60		83322		83323		83324
				80		83335		83336		83337
				100		83348		83349		83340
				120		83351		83352		83353
				150		83364		83365		83366
				180		83377		83378		83379
				240		83380		83381		83382
				320		83393		83394		83395
4" x 4" x 3/4"	100 x 100 x 19 mm	2,000	5,700	40	10	83406		83407		83408
				50		83419		83410		83411
				60		83422		83423		83424
				80		83435		83436		83437
				100		83448		83449		83440
				120		83451		83452		83453
				150		83464		83465		83466
				180		83477		83478		83479
				240		83480		83481		83482
				320		83493		83494		83495
4-1/4" x 2" x 5/8"-11	100 x 50 x 5/8"-11	2,000	5,700	40	10		83506		83507		83508
				50			83519		83510		83511
				60			83522		83523		83524
				80			83535		83536		83537
				100			83548		83549		83540
				120			83551		83552		83553
				150			83564		83565		83566
				180			83577		83578		83579
				240			83580		83581		83582
				320			83593		83594		83595
4-1/4" x 4" x 5/8"-11	100 x 100 x 5/8"-11	2,000	5,700	40	10		83606		83607		83608
				50			83619		83710		83711
				60			83722		83723		83724
				80			83735		83736		83737
				100			83748		83749		83740
				120			83751		83752		83753
				150			83764		83765		83766
				180			83777		83778		83779
				240			83780		83781		83782
				320			83793		83794		83795
4-1/4" x 2" x M14-2	100 x 50 x M14-2	2,000	5,700	40	10		83806		83807		83808
				50			83819		83810		83811
				60			83822		83823		83824
				80			83835		83836		83837
				100			83848		83849		83840
				120			83851		83852		83853
				150			83864		83865		83866
				180			83877		83878		83879
				240			83880		83881		83882
				320			83893		83894		83895
4-1/4" x 4" x M14-2	100 x 100 x M14-2	2,000	5,700	40	10		83906		83907		83908
				50			83919		83910		83911
				60			83922		83923		83924
				80			83935		83936		83937
				100			83948		83949		83940
				120			83951		83952		83953
				150			83964		83965		83966
				180			83977		83978		83979
				240			83980		83981		83982
				320			83993		83994		83995
