: http://ftth-fiber.com/2-4-4-plug-in-fixed-attenuator.html

The plug-in type attenuator is connected to a fiber optical connector at one end and a fiber optical adapter at the other end. Its attenuation is fixed, un-adjustable. It comes in different types including SC, LC, FC, ST and MU.

Specification
  • Operating Wavelength: SM: 1200-1600nm or 1310nm, 1550nm
  • MM: 850nm, 1300nm
  • Attenuator Range: 1-30dB
  • Return Loss≥55 dB (UPC); ≥65 dB (APC)
  • Attenuation Accuracy: /-0.5 (1-5) dB; /-10% (6-30) dB
  • Polarization Dependent Loss: ≤0.2dB
  • Maximum Optical Input Power: 200mW
  • Operating Temp. Range:-40 ~ 80°C (0.6 dB change between -4 0~80°C).
Applications
  • Telecommunication Networks
  • Data Networks
  • Video & CATV
Features
  • Bell core Compliant
  • Durability (well over 100mw)
  • Wavelength Independent (DWDM)
  • Simple and Reliable Structure
FC Fiber Optical Attenuator
PN Attenuation value PN Attenuation value
130-0100-301 0dB130-0111-30111dB
130-0101-301 1dB 130-0112-301 12dB
130-0102-301 2dB130-0113-30113dB
130-0103-301 3dB130-0114-30114dB
130-0104-301 4dB130-0115-30115dB
130-0105-301 5dB130-0116-30116dB
130-0106-301 6dB130-0117-30117dB
130-0107-301 7dB130-0118-30118dB
130-0108-301 8dB130-0119-30119dB
130-0109-301 9dB130-0120-30120dB
130-0110-301 10dB130-0125-30125dB
SC Fiber Optical Attenuator (Metal Housing)
PN Attenuation value PN Attenuation value
130-0200-301 0dB130-0211-30111dB
130-0201-301 1dB 130-0212-301 12dB
130-0202-301 2dB130-0213-30113dB
130-0203-301 3dB130-0214-30114dB
130-0104-301 4dB130-0115-30115dB
130-0205-301 5dB130-0216-30116dB
130-0206-301 6dB130-0217-30117dB
130-0207-301 7dB130-0218-30118dB
130-0208-301 8dB130-0219-30119dB
130-0209-301 9dB130-0220-30120dB
130-0210-301 10dB130-0225-30125dB
LC Fiber Optical Attenuator (6.9mm)
PN Attenuation value PN Attenuation value
130-0300-301 0dB130-0313-30113dB
130-0301-301 1dB 130-0314-301 14dB
130-0302-301 2dB130-0315-30115dB
130-0303-301 3dB130-0316-30116dB
130-0304-301 4dB130-0317-30117dB
130-0305-301 5dB130-0318-30118dB
130-0306-301 6dB130-0319-30119dB
130-0307-301 7dB130-0320-30120dB
130-0308-301 8dB130-0321-30121dB
130-0309-301 9dB130-0322-30122dB
130-0310-301 10dB130-0323-30123dB
130-0311-301 11dB130-0325-30125dB
130-0312-301 12dB130-0330-30130dB
LC Optical Attenuator (6.9mm)
PN Attenuation value PN Attenuation value
130-0300-302 0dB130-0316-30316dB
130-0301-303 1dB 130-0317-303 17dB
130-0302-303 2dB130-0318-30318dB
130-0303-302 3dB130-0319-30319dB
130-0304-303 4dB130-0320-30320dB
130-0305-302 5dB130-0321-30221dB
130-0306-301 6dB130-0322-30122dB
130-0307-302 7dB130-0323-30223dB
130-0308-303 8dB130-0324-30124dB
130-0309-303 9dB130-0325-30225dB
130-0310-302 10dB130-0326-30126dB
130-0311-303 11dB130-0327-30127dB
130-0312-303 12dB130-0328-30128dB
130-0313-303 13dB130-0329-30129dB
130-0314-303 14dB130-0330-30230dB
130-0315-302 15dB
ST Fiber Optical Attenuator
PN Attenuation value PN Attenuation value
130-0401-301 0dB130-0414-30114dB
130-0402-301 1dB 130-0415-301 15dB
130-0403-301 2dB130-0416-30116dB
130-0404-301 3dB130-0417-30117dB
130-0405-301 4dB130-0418-30118dB
130-0406-301 5dB130-0419-30119dB
130-0407-301 6dB130-0420-30120dB
130-0408-301 7dB130-0421-30121dB
130-0409-301 8dB130-0422-30122dB
130-0410-301 9dB130-0423-30123dB
130-0411-301 10dB130-0424-30124dB
130-0412-301 11dB130-0425-30125dB
130-0413-301 12dB130-0430-30130dB
130-0414-301 13dB130-0431-30135dB
130-0314-303 14dB
LC/APC Fiber Optical Attenuator (6.9mm)
PN Attenuation value PN Attenuation value
130-1100-301 0dB130-1113-30114dB
130-1101-301 1dB 130-1114-301 15dB
130-1102-301 2dB130-1115-30116dB
130-1103-301 3dB130-1116-30117dB
130-1104-301 4dB130-1117-30118dB
130-1105-301 5dB130-1118-30119dB
130-1106-301 6dB130-1119-30120dB
130-1107-301 7dB130-1120-30121dB
130-1108-301 8dB130-1121-30122dB
130-1109-301 9dB130-1123-30123dB
130-1110-301 10dB130-1125-30125dB
130-1111-301 11dB130-1127-30127dB
130-1112-301 12dB130-1130-30130dB
LC/APC Optical Attenuator (6.2mm)
PN Attenuation value PN Attenuation value
130-1100-303 0dB130-1105-3055dB
130-1102-305 2dB 130-1110-305 10dB
130-1102-304 4dB
SC Fiber Optical Attenuator (Plastic Housing)
PN Attenuation value PN Attenuation value
130-0201-304 0dB130-0214-30314dB
130-0202-304 1dB 130-0215-304 15dB
130-0203-304 2dB130-0216-30416dB
130-0204-304 3dB130-0217-30417dB
130-0205-304 4dB130-0218-30318dB
130-0206-304 5dB130-0219-30319dB
130-0207-304 6dB130-0220-30320dB
130-0208-304 7dB130-0222-30322dB
130-0409-301 8dB130-0223-30223dB
130-0210-304 9dB130-0224-30224dB
130-0211-304 10dB130-0225-30325dB
130-0212-304 11dB130-0230-30230dB
130-0213-304 13dB
SC/APC Optical Attenuator (Plastic Housing)
PN Attenuation value PN Attenuation value
130-1000-302 0dB130-1011-30311dB
130-1001-303 1dB 130-1012-303 12dB
130-1002-303 2dB130-1013-30313dB
130-1003-303 3dB130-1014-30314dB
130-1004-303 4dB130-1015-30315dB
130-1005-303 5dB130-1016-30316dB
130-1006-303 6dB130-1017-30317dB
130-1007-303 7dB130-1018-30218dB
130-1008-303 8dB130-1009-30219dB
130-1009-303 9dB130-1020-30220dB
130-1010-303 10dB130-0025-30225dB
MU Fiber Optical Attenuator
PN Attenuation value PN Attenuation value
130-0501-301 1dB130-0512-30112dB
130-0502-301 2dB 130-0513-301 13dB
130-0503-301 3dB130-0514-30114dB
130-0504-301 4dB130-0515-30115dB
130-0505-301 5dB130-0516-30116dB
130-0506-301 6dB130-0517-30117dB
130-0507-301 7dB130-0518-30118dB
130-0508-301 8dB130-0519-30119dB
130-0509-301 9dB130-0520-30120dB
130-0510-301 10dB130-0521-30121dB
130-0511-301 11dB
FC/APC Optical Attenuator
PN Attenuation value PN Attenuation value
130-0901-301 1dB 130-0915-30115dB
130-0902-301 2dB 130-0916-301 16dB
130-0903-301 3dB130-0917-30117dB
130-0904-301 4dB130-0918-30118dB
130-0905-301 5dB130-0919-30119dB
130-0906-301 6dB130-0920-30120dB
130-0907-301 7dB130-0921-30121dB
130-0908-301 8dB130-0922-30122dB
130-0909-301 9dB130-0923-30123dB
130-0910-301 10dB130-0924-30124dB
130-0911-301 11dB130-0925-30125dB
130-0912-301 12dB130-0930-30130dB
130-0913-301 13dB130-0931-30131dB
130-0914-301 14dB
SC/APC Optical Attenuator (Metal Housing)
PN Attenuation value PN Attenuation value
130-1000-301 0dB 130-1014-30114dB
130-1001-301 1dB 130-1015-301 15dB
130-1002-301 2dB130-1016-30116dB
130-1003-302 3dB130-1017-30217dB
130-1004-301 4dB130-1018-30118dB
130-1005-301 5dB130-1019-30119dB
130-1006-301 6dB130-1020-30120dB
130-1007-302 7dB130-1021-30121dB
130-1008-301 8dB130-1022-30122dB
130-1009-301 9dB130-1023-30123dB
130-1010-301 10dB130-1024-30224dB
130-1011-301 11dB130-1025-30125dB
130-1012-301 12dB130-1027-30227dB
130-1013-301 13dB130-1030-30130dB
Related products
In-line Fixed Attenuator
In-line Fixed Attenuator
Fixed Fiber Optical Attenuator, Adapter Type
Fixed Fiber Optical Attenuator, Adapter Type
Fiber Optic Attenuator
Fiber Optic Attenuator
MPO Attenuator
MPO Attenuator
Send Message
Most Recent
Short Pitch Precision Roller Chains Short Pitch Precision Roller Chains motorcycle-chains.com
Rubber Screen Rubber Screen mining-screening.com
Dental Curing Light, LED.Fabulours Dental Curing Light, LED.Fabulours dentalchairpackage.com
Freeze Resistant Safety Shower & Eyewash Station Freeze Resistant Safety Shower & Eyewash Station emergency-eyewashes.com
More
1-Person Infrared Sauna, DX-6154 1-Person Infrared Sauna, DX-6154 sauna-bathing.com
Special Shape Sealable Aluminum Foil Container Special Shape Sealable Aluminum Foil Container foil-container.com
Dough Feeder Dough Feeder biscuitmakingline.com
Medical Endoscope Camera System with Dual Simultaneous Image Outputs, INP-500 Medical Endoscope Camera System with Dual Simultaneous Image Outputs, INP-500 endoscope-cameras.com
Rollstock Lidding Rollstock Lidding dongyapack.com
Glass Jar with Bamboo Lid, SP-101 Glass Jar with Bamboo Lid, SP-101 custom-packages.com
Other Products
Circuit Breaker Plug-In Device Circuit Breaker Plug-In Device topcircuitbreaker.com
Inner Cone Plug-In Termination Inner Cone Plug-In Termination woercableaccessories.com
Plug-in type Fiber Optic Beam Splitter Plug-in type Fiber Optic Beam Splitter fiber-parts.com
Plug-in Type Optical Beam Splitter Plug-in Type Optical Beam Splitter data-equip.com

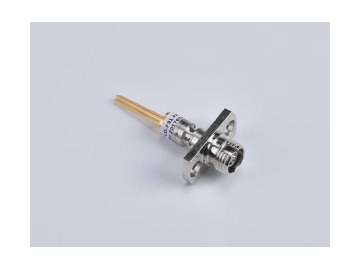

Receptacle Laser Diode Module Plug in Type Receptacle Laser Diode Module Plug in Type laserdiodedevice.com
