Rotary Cam Switches Manufacturer Since 1981

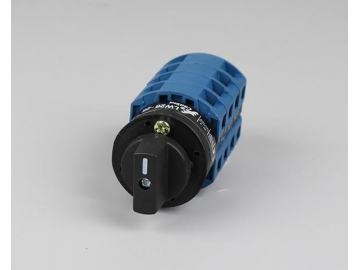

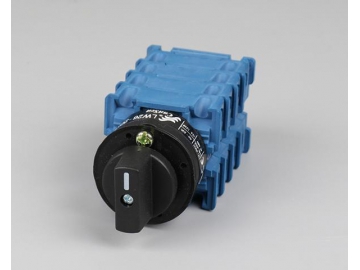

4 pole rotary cam changeover switch with two mounting holes is applicable to those machines are already equipped with guide card panel, so front panels are not required on switch. With such installation method, damage to the panel is reduced, and distance between installation holes is short, having less anesthetic impact on customer’s panel.
LW26-20 1-0-2 4P (61028)
General Information
- Rated working current: 20A
- Panel: W/O, Double hole
- Diagram code: 61028（1-0-2 4P）
- Color: Blue/black/white
- Handle: B type
- IP rating: IP20
- Layer: 4
- Certification: UL, CE, TUV, CCC, ISO
| Specification | LW26-20 | |||
| Rated insulation voltage | 660/690 | |||
| Rated thermal current | 20 | |||
| Rated working voltage | 24 | 110 | 240 | 440 |
| Rated working current | ||||
| AC-21A | 20 | 20 | ||
| AC-23A | 15 | 15 | ||
| AC-2 | 15 | 15 | ||
| AC-3 | 11 | 11 | ||
| AC-4 | 3.5 | 3.5 | ||
| AC-15 | 5 | 4 | ||
| DC-13 | 12 | 0.4 | 0.4 | |
| Power | ||||
| AC-23A | 3.7/2.5 | 7.5/3.7 | ||
| AC-2 | 4 | 7.5 | ||
| AC-3 | 3/2.2 | 5.5/3 | ||
| AC-4 | 0.55/0.75 | 1.5/1.5 | ||
LW26-20(X) 1-0-2 4P (61028)
- Rated working current: 20A
- Panel: W/O, Double hole
- Diagram code: 61028（1-0-2 4P）
- Color: Blue/black/white
- Handle: B type
- IP rating : IP20
- Layer: 4
- Certification: UL, CE, TUV, CCC, ISO
| Specification | LW26-20（X） | |||
| Rated insulation voltage | 660/690 | |||
| Rated thermal current | 20 | |||
| Rated working voltage | 24 | 110 | 240 | 440 |
| Rated working current | ||||
| AC-21A | 20 | 20 | ||
| AC-23A | 15 | 15 | ||
| AC-2 | 15 | 15 | ||
| AC-3 | 11 | 11 | ||
| AC-4 | 3.5 | 3.5 | ||
| AC-15 | 5 | 4 | ||
| DC-13 | 12 | 0.4 | 0.4 | |
| Power | ||||
| AC-23A | 3.7/2.5 | 7.5/3.7 | ||
| AC-2 | 4 | 7.5 | ||
| AC-3 | 3/2.2 | 5.5/3 | ||
| AC-4 | 0.55/0.75 | 1.5/1.5 | ||
LW26-25 1-0-2 4P (61028)
- Rated working current: 25A
- Panel: W/O, Double hole
- Diagram code: 61028（1-0-2 4P）
- Color: Blue/black/white
- Handle : B type
- IP rating : IP20
- Layer: 4
- Certification: UL, CE, TUV, CCC, ISO
| Specification | LW26-25 | |||
| Rated insulation voltage | 660/690 | |||
| Rated thermal current | 25 | |||
| Rated working voltage | 24 | 110 | 240 | 440 |
| Rated working current | ||||
| AC-21A | 25 | 25 | ||
| AC-23A | 22 | 22 | ||
| AC-2 | 22 | 22 | ||
| AC-3 | 15 | 15 | ||
| AC-4 | 6.5 | 6.5 | ||
| AC-15 | 8 | 5 | ||
| DC-13 | 20 | 0.5 | 0.5 | |
| Power | ||||
| AC-23A | 5.5/3 | 11/5.5 | ||
| AC-2 | 5.5 | 11 | ||
| AC-3 | 4/3 | 7.5/3.7 | ||
| AC-4 | 1.5/1.1 | 3/2.2 | ||
