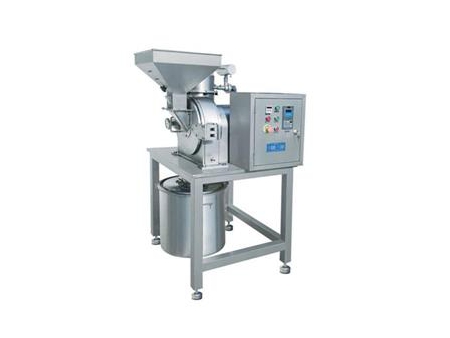

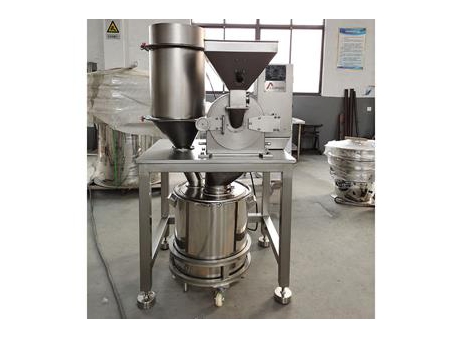

Dust Collecting Crushing Set, WF-C Series
Combined with dust collecting and crushing, the crushing equipment is suitable for crushing materials in chemical, pharmaceutical and food industries.
Features

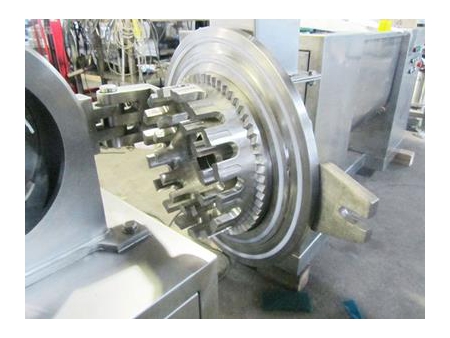

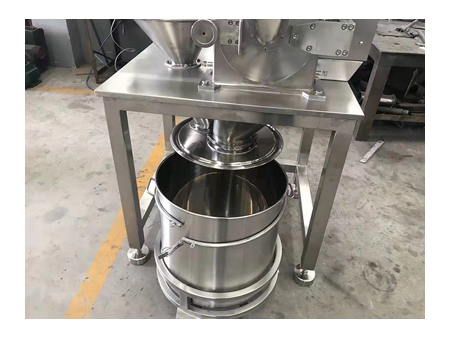

The crushing chamber can be designed with turbine, blade, hammer and other crushing structures. Adopting straight-line discharge ensures high crushing efficiency and avoids high temperature caused by air resistance. This machine has a buffer discharge device and automatic separation of materials and air, which is a new generation of crushing equipment with high output.
Technical Specifications
| Model | ||||
| Capacity(kg/h) | 10-200 | 30-800 | 50-1200 | 100-1500 |
| Material Size (mm) | ＜10 | ＜15 | ＜15 | ＜15 |
| Product Size(mesh) | 80-320 | 80-320 | 80-300 | 80-300 |
| Total Power(kw) | 14.3 | 38.85 | 69.6 | 87.6 |
| Main Revolution(r/min) | -6000 | -3800 | -2800 | -2500 |
| Overall Dimension (L * W * H)(mm) | 4200*1200*2700 | 6640*1300*3960 | 7500*2300*4530 | 9000*2300*4530 |
| Weight(kg) | 850 | 1500 | 3200 | 3700 |
