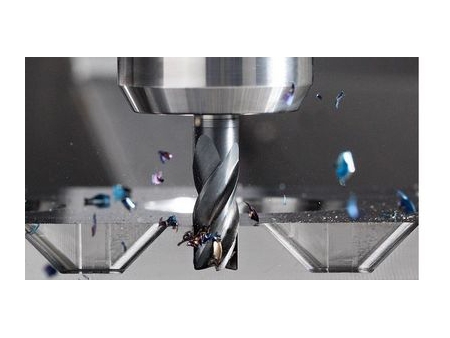

EMT04 4 Flute Carbide Router Bit, Long Length
- Designed for low hardness materials (under HRc45) such as alloy steel, inconel, tools steel, carbon steel, prehardened steel, stainless steel, titanium alloy
- Provides excellent surface finishes on the workpieces
- 4 Flute router bit with high rigidity is widely used in shallow slotting, profile milling, and finishing
Application
Product Specifications
| Coating | AITiN /TiALN /TiSiN | HRC | HRC35/45 |
| Helix Angle | 35°/36°/37° | Shank | Cylindrical H6 |
| Material | IMC™ Carbide Rod | Tolerance on Cutting Diameter | 0-0.030 |
Carbide Square 4 Flutes (UNT-EMT04）- Universal and Economical Style
| UNT EDP # Click to Order | Mill Dia. D1 | Shank Dia. D2 | Flute Length L1 | O.A.L. L2 | Flutes |
| EMT04010075 | 1.0 | 4 | 5 | 75 | 4 |
| EMT04015075 | 1.5 | 4 | 6 | 75 | 4 |
| EMT04020075 | 2.0 | 4 | 8 | 75 | 4 |
| EMT04025075 | 2.5 | 4 | 8 | 75 | 4 |
| EMT04030075 | 3.0 | 4 | 10 | 75 | 4 |
| EMT04040075 | 4.0 | 4 | 12 | 75 | 4 |
| EMT04040100 | 4.0 | 4 | 12 | 100 | 4 |
| EMT040100756 | 1.0 | 6 | 5 | 75 | 4 |
| EMT040150756 | 1.5 | 6 | 6 | 75 | 4 |
| EMT040200756 | 2.0 | 6 | 8 | 75 | 4 |
| EMT040250756 | 2.5 | 6 | 8 | 75 | 4 |
| EMT040300756 | 3.0 | 6 | 10 | 75 | 4 |
| EMT040400756 | 4.0 | 6 | 12 | 75 | 4 |
| EMT04050075 | 5.0 | 6 | 16 | 75 | 4 |
| EMT04050100 | 5.0 | 6 | 16 | 100 | 4 |
| EMT04060075 | 6.0 | 6 | 20 | 75 | 4 |
| EMT04060100 | 6.0 | 6 | 30 | 100 | 4 |
| EMT04080075 | 8.0 | 8 | 25 | 75 | 4 |
| EMT04080100 | 8.0 | 8 | 35 | 100 | 4 |
| EMT04100100 | 10.0 | 10 | 40 | 100 | 4 |
| EMT04120100 | 12.0 | 12 | 45 | 100 | 4 |
| EMT04060150 | 6.0 | 6 | 35 | 150 | 4 |
| EMT04080150 | 8.0 | 8 | 40 | 150 | 4 |
| EMT04100150 | 10.0 | 10 | 50 | 150 | 4 |
| EMT04120150 | 12.0 | 12 | 50 | 150 | 4 |
| EMT04160150 | 16.0 | 16 | 70 | 150 | 4 |
• Router bits with non-standard sizes or specifications not listed above can be customized according to customer needs.
