Amphibious Excavator

: http://dredger-boat.com/2-4-heavy-duty-amphibious-excavator-dredger.html

Application

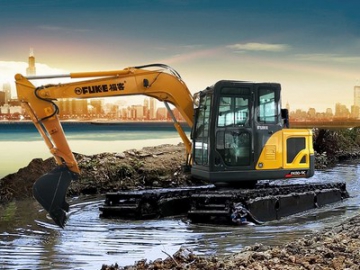

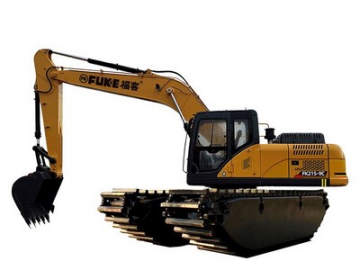

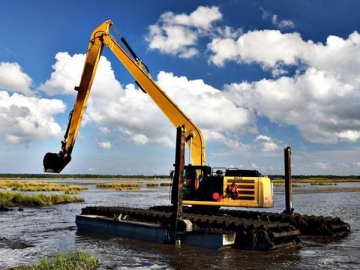

Amphibious Excavator is a kind of multifunctional excavator suitable for land, marshy soft ground and shallow water operation. The excavator is a special engineering equipment specially designed for excavation and dredging in wetlands, mudflats, silting channels and other areas where engineering vessel and conventional engineering machinery can not enter and carry out construction. The amphibious excavator is widely applied to river and lake dredging of water conservancy project and town and country construction and resource development and environmental improvement of wetland swamp and mudflat.

Technical parameter

Model	DGAME15	DGAME20	DGAME26	DGAME30
Working Weight	15000 kg	20000 kg	26000 kg	30000 kg
Standard Bucket Capacity	0.25 m3	0.4 m3	0.9 m3	1.0 m3
Engine Power	56.5 kw	89.3 kw	114 kw	135 kw
Traveling Speed	3.8 km/h	3.1 km/h	3.2 km/h	3.2 km/h
Rotation Speed	11 rpm	11 rpm	11 rpm	11 rpm
Maximum Gradeability	30 o	30 o	30 o	30 o
Standard Digging Depth	6870 mm	7360 mm	8700 mm	9360 mm
Standard Digging Radius	9990 mm	10810 mm	11920 mm	12810 mm
Amphibious Pontoon Dimension	7170 x 1400 x 1420 mm	8560 x 1490 x 1500 mm	9450 x 1490 x 1700 mm	11050 x 1600 x 1750 mm
Chain Quantity	2 pcs	2 pcs	3 pcs	3 pcs
Min Ground Clearance	734 mm	890 mm	1090 mm	1120 mm

Note: Since our equipment is continuous improved, we reserve the right to modify model, parameter and specifications without prior notice.

Feature

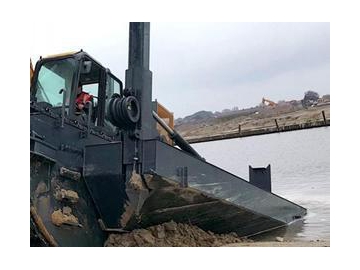

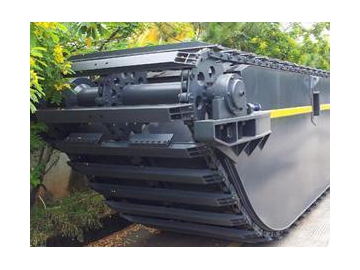

1. Our amphibious excavator adopts special reinforced track shoe and buoyancy tank, which can ensure normal operation in severe conditions.

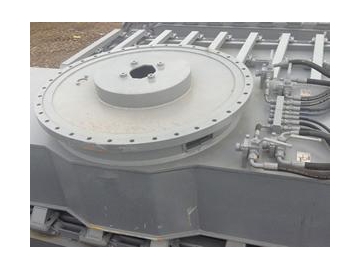

2. The excavator and buoyancy tank is equipped with a replaceable joint assembly and therefore the dredger can be equipped with different type of excavators.

3. We can help customers to install spud on the track buoyancy tank to increase stability at working.

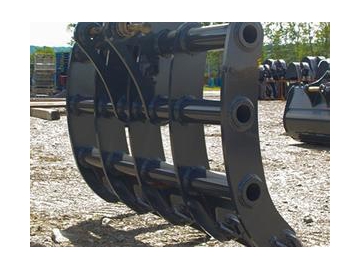

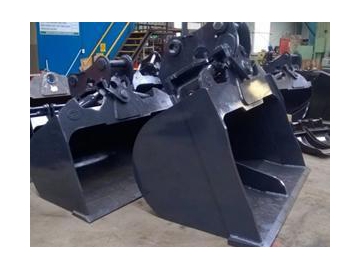

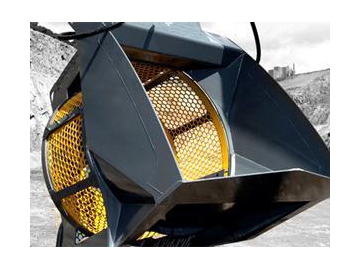

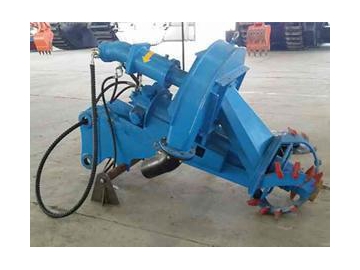

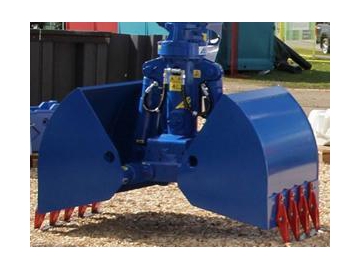

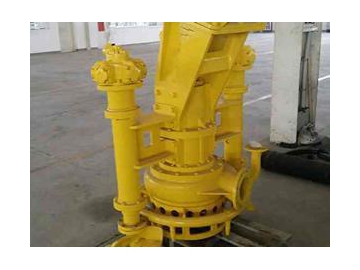

4. The amphibious excavator can be equipped with different working unit to meet different working demands.

Our company is offering amphibious excavator to remove sand and mud in river, lake, pond, canal, etc. We have plenty production equipment to make good quality water cleaning and dredging equipment to meet customer demands.
