SC-180II-S Screw Driving Robot

: http://automated-system.com/2-4-sc-180-screw-driving-robot.html

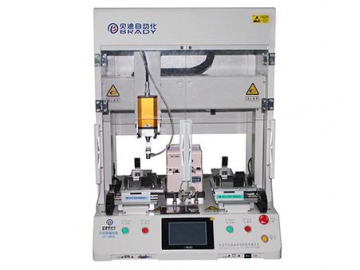

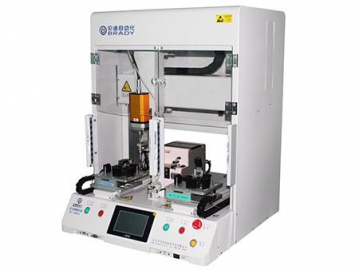

SC-180II-S screw driving robot adopts 4-axis precise stepper motor and double Y-axis design, which makes it has high flexibility and work efficiency. It is widely used for screw fastening on electronic products.

Characteristics

The screw driving robot realizes automatic detection of screw missing, screw slip teeth and floating lock.
Equipped with universal fixture, the robot has high flexibility and can be used in various types of products.

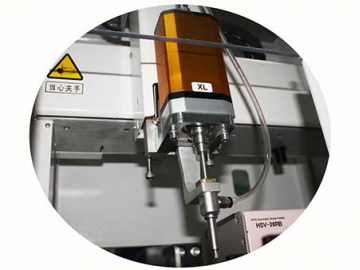

Screws of M1.0-M4.0 can be fastened using this machine by replacing screw conveyer, suction nozzle and screwdriver bit.
The screw driving robot is compact in size and is easy to pair with a production line. Automatically pick and tighten screws, greatly improve working efficiency.

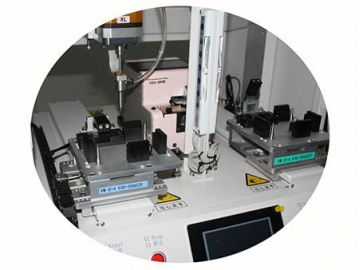

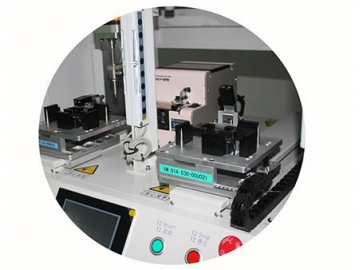

The double Y-axis design can realize the alternate operation and eliminate the wasted time of taking and putting products, which maximize the production efficiency.

Technical parameters

Dimension: 570*610*640mm（L*W*H）
Working range: 170*200*70mm（X*Y*Z）
Drive mode: 4 axis precision stepper motor
Positioning accuracy: ±0.02mm
Guide rail: high quality slide rail from internationally well-known brands
Control system: PLC+touch screen
Screw feeding mode: suction type
The number of screw feeder: 1 set
Type of programming: Teaching type
Fastening speed: less than 1.2S/pcs
Program memory: 100 sets, 100 points/set(max.)
COM port: USB
Power supply: 220VAC, 50HZ
Air pressure: 0.4Mpa
Net weight: 60kg
