SLR039-G80 EYE SLING HOOK WITH LATCH
Ultimate load is 4 times the Working Load Limit.

Features
●It is forged by special alloy steel with high intensity and high toughness, and then it is heat treated;
● It can be matched with sling and G80 chains which can meet the standard EN818-2;
● Each workpiece should pass testing at 2.5 times of working load limit;
● We should carry out sampling and 20000 times of fatigue testing;
● We should carry out strict sampling and breakage testing for each batch of products;
● We should carry out 100% magnetic powder flaw detection;
● 100% of the pin should be tested to ensure that they have the same hardness;
● Surface treatment: plastics spraying.
● Color code: red RAL3020/yellow RAL1003.

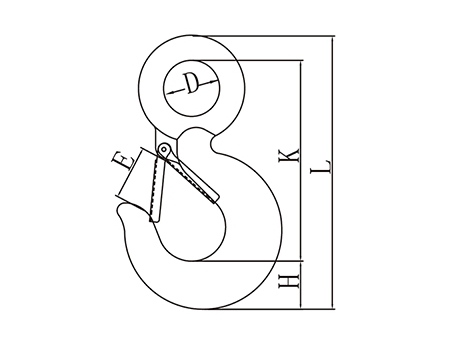

Parameters (Unit: mm)

Item code	WEIGHT (KG)	Working load limit (t)	Breaking load(t)	D±1	E±1.5	H±1	K±2	L±2
8-SLR039-06	0.28	1.12	4.48	19	22	19	80	110
8-SLR039-7/8	0.65	2.0	8.0	28	25	25	103	140.5
8-SLR039-10	0.94	3.15	12.6	31	27.5	28	118	162
8-SLR039-13	1.95	5.3	21.2	39	33	35	145	201
8-SLR039-16	3.77	8	32	51	40	45	180	256
8-SLR039-20	6.8	12.5	50	62	51	57	230	317
8-SLR039-22	9.8	15	60	73	57	70	260	360
8-SLR039-26	16.25	21.2	84.8	89	75	76	318	434
8-SLR039-32	27.2	31.5	126	90	98	91	360	495.5
