Alloy Steel Clevis Lug Link Manufacturer

Alloy Steel Clevis Lug Link

: http://shenli-rigging.com/2-46-alloy-steel-clevis-lug-link.html

Features
● Ultimate load is 4 times the Working Load Limit.
● It is forged by special alloy steel with high intensity and high toughness, and then it is heat treated;
● It can be matched with sling and G80 chains which can meet the standard EN818-2;
● Each workpiece should pass testing at 2.5 times of working load limit;
● We should carry out sampling and 20000 times of fatigue testing;
● We should carry out strict sampling and breakage testing for each batch of products;
● We should carry out 100% magnetic powder flaw detection;
● 100% of the pin should be tested to ensure that they have the same hardness;
● Surface treatment: plastics spraying.
● Color code: red RAL3020/yellow RAL1003.

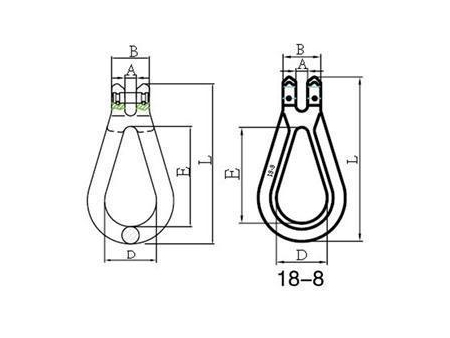

Parameters (Unit: mm)

Item Code	Weight (kg)	Woring Load Limit (t)	Breaking Load (t)	A±0.5	B±1.5	D±1	E±1.5	L±2
8-SLR270-7/8	0.53	2	8	10	32.8	45	87	139
8-SLR270-10	0.74	3.15	12.6	12	42	60	108	174
8-SLR270-13	1.76	5.3	21.2	16.5	55.5	66.5	137.5	228
8-SLR270-16	2.8	8	32	19	68	72	165	264
8-SLR270-18	3.5	10	40	23	73	98	185	317
