WN02SM5 Manual Tilt Platform

: http://optical-equipment.com/2-5-1-manual-tilt-platform.html

This product has been discontinued and removed from our shelves.

The tilt platform can be used to provide two-dimensional pitching adjustment manually in the fields of scientific research, automatic measurement and test.

Specifications

Model	Table size	Function	Drive method	Tilt range	Minimum incremental motion	Load capacity	Weight
WN02SM5	125mm×75mm	two-dimensional pitching adjustment	micrometer head	±5°	5′	10kg	0.51kg

Features

The manual tilt platform features duralumin construction, and the surface is treated by black anodizing.
The tilt platform is driven by micrometer head. With high quality disc spring to reset, excellent stability available.

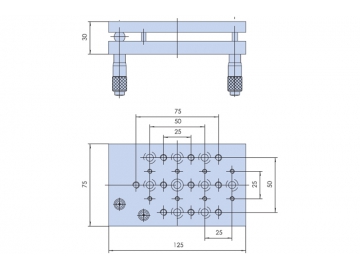

The mounting holes are distributed on the base and table with standard hole spacing, which makes the platform convenient to combine with other series of products.
