12T Telescopic Boom Crane, STSQ12CZ

12T Telescopic Boom Crane, STSQ12CZ
12T Telescopic Boom Crane, STSQ12CZ
12T Telescopic Boom Crane, STSQ12CZ
12T Telescopic Boom Crane, STSQ12CZ

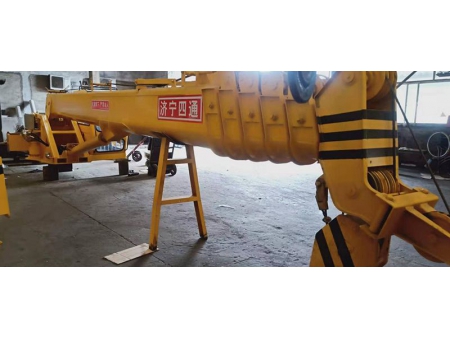

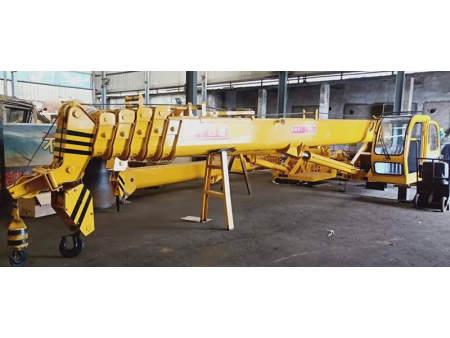

STSQ12CZ 12-ton telescopic boom crane is a marine crane able to perform load handling tasks in the marine environment. It is equipped with a 5-section telescopic boom, the maximum lifting height can reach 30 meters. The simple design of this telescopic marine crane simplifies the operation and maintenance, facilitates the loading and unloading of materials, as well as eliminates the need for tedious preparation steps.


Specification
Max. loading capacity
12t
Max. lifting height
30m
Boom
5 sections (7m per section)
Gearbox
planetary reducer
Dimensions
9.8m*2.35m
Motor/pump
11kW explosion-proof motor / 40# pump
Hoisting speed
45m/min
Slewing speed
2.8r/min
