WN05SM4 Manual Tilt Platform Manufacturer

WN05SM4 Manual Tilt Platform

: http://optical-equipment.com/2-5-2-manual-tilt-platform.html

This product has been discontinued and removed from our shelves.

The tilt platform can be used to provide two-dimensional pitching adjustment manually in the fields of scientific research, automatic measurement and test.

Specifications

Model	Table size	Function	Actuator	Adjustment range	Incremental Minimum motion	Load capacity	Weight
WN05SM4	60mm×60mm	two-dimensional pitching adjustment	micrometer head	pitching±4°	5′	4kg	0.35kg

Features

The manual tilt platform features duralumin construction, and the surface is treated by black anodizing
The reversing mechanism can turn the horizontal movement into the pitching adjustment of the table.
The tilt platform is driven by micrometer head. With high quality disc spring to reset, excellent stability available.

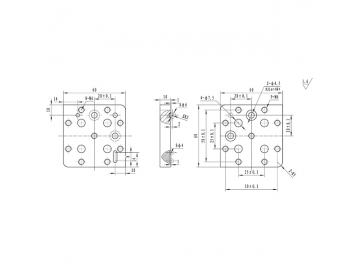

The mounting holes are distributed on the base and table with standard hole spacing, which makes the platform convenient to combine with other series of products.
