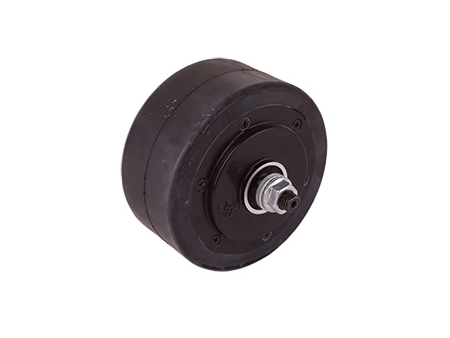

200-250W Drive Motor, PMDC Brushless Motor GF055AH
Your Motion
Application: E-skateboard
Technical Specifications
| Rated Power (W) | 200 | 250 | 200 | 250 |
| Max. Power (W) | 400 | 500 | 400 | 500 |
| Rated Voltage(V) | 36 | 36 | 36 | 36 |
| No-load Current(A) | ≤1.0 | ≤1.2 | ≤1.0 | ≤1.2 |
| No-load Revolution (RPM) | 2300±5% | 2250±5% | 2300±5% | 2250±5% |
| Rated Torque (N•m) | 1.0 | 1.2 | 1.0 | 1.2 |
| Max. Torque (N•m) | ≥3.0 | ≥4.0 | ≥3.0 | ≥4.0 |
| Rated Revolution (RPM) | 2000±5% | 1950±5% | 2000±5% | 1950±5% |
| Rated Current(A) | ≤8.0 | ≤9.0 | ≤8.0 | ≤9.0 |
| Rated Efficiency (%) | ≥76 | ≥76 | ≥76 | ≥76 |
| Working Cycle (min.) | S2-60 | S2-60 | S2-60 | S2-60 |
| Insulation Class | E | E | E | E |
| Protection Level | IP33 | IP33 | IP33 | IP33 |
| Out-Shaft Length (L/mm) | 30/37 | 30/37 | 30/37 | 30/37 |
| Outer Diameter (D/mm) | 83/90 | 83/90 | 90 | 90 |
| Tire Replacement | No | No | Yes | Yes |
Note: we can customize any brushless DC drive motors according to your application requirements and working conditions.
