Arbor Mandrel Non-Woven Polishing Discs Manufacturer

Arbor Mandrel Non-Woven Polishing Discs

: http://indus-abrasives.com/2-5-6-mandrel-nonwoven-polishing-discs.html

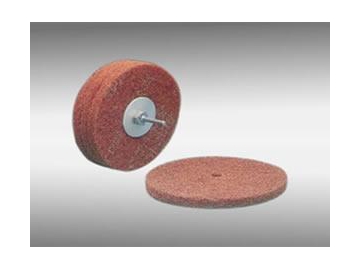

Joysun Alumina arbor mandrel non-woven polishing discs are designed for compatibility with die grinders and right angle grinders. The discs are mounted on a spindle with a steel shank with flanges used individually or stacked for varying widths. The open cell structures of the polishing discs help to perform surface conditioning on hard to reach areas. They are highly efficient when it comes to stock removal, grinding performance and they feature an extended working life. The arbor holes can be reduced to smaller diameters with a reducer bushing.

JAC-K767HD Arbor Mandrel Non-Woven Polishing Discs

Availability

Product Code	JAC-K767HD	JAC- K768HD	JAC- K769HD
Abrasive Grains	Alumina Oxide	Alumina Oxide	Alumina Oxide
Backing Cloth Type	High Strength Non-woven	High Strength Non-woven	High Strength Non-woven
Fastening Quick-Lok Type	Straight Mandrel	Straight Mandrel	Straight Mandrel

BRITSH SIZE	METRIC SIZE	GRIT	MAX	STD	PART #	PART #	PART #
( D x H )	( D x H )	GRIT	RPM	PACK	PART #	PART #	PART #
4" x 5/8"	100 x 16.00 mm	CRS	6,000	50	76701	76801	76901
		MED		50	76714	76814	76914
		VFN		50	76727	76827	76927
		SFN		50	76730	76830	76930
6" x 1/4"	150 x 6.35 mm	CRS	4,000	50	76743	76843	76943
		MED		50	76756	76856	76956
		VFN		50	76769	76869	76969
		SFN		50	76772	76872	76972
6" x 1/2"	150 x 12.7 mm	CRS	4,000	50	76785	76885	76985
		MED		50	76798	76898	76998
		VFN		50	76801	76901	77001
		SFN		50	76814	76914	77014
6" x 3/4"	150 x 20.0 mm	CRS	4,000	50	76827	76927	77027
		MED		50	76830	76930	77030
		VFN		50	76843	76943	77043
		SFN		50	76856	76956	77056
8" x 1/4"	200 x 6.35 mm	CRS	3,000	50	76869	76969	77069
		MED		50	76872	76972	77072
		VFN		50	76885	76985	77085
		SFN		50	76898	76998	77098
8" x 1/2"	200 x 12.7 mm	CRS	3,000	50	76901	77001	77101
		MED		50	76914	77014	77114
		VFN		50	76927	77027	77127
		SFN		50	76930	77030	77130
8" x 3/4"	200 x 20.0 mm	CRS	3,000	50	76943	77043	77143
		MED		50	76956	77056	77156
		VFN		50	76969	77069	77169
		SFN		50	76972	77072	77172
10" x 3/4"	250 x 20.0 mm	CRS	2,500	50	76985	77085	77185
		MED		50	76998	77098	77198
		VFN		50	77001	77101	77201
		SFN		50	77014	77114	77214
12" x 3/4"	305 x 20.0 mm	CRS	2,000	50	77027	77127	77227
		MED		50	77130	77230	77330
		VFN		50	77143	77243	77343
		SFN		50	77156	77256	77356
12" x 1-1/4"	305 x 32.0 mm	CRS	2,000	50	77169	77269	77369
		MED		50	77172	77272	77372
		VFN		50	77185	77285	77385
		SFN		50	77198	77298	77398
