Alloy Steel Lifting Eye Bolt
Features
● It is forged by special alloy steel with high intensity and high toughness, and then it is heat treated;
● Each workpiece should pass testing at 2.5 times of working load limit;
● We should carry out sampling and 20000 times of fatigue testing;
● We should carry out strict sampling and breakage testing for each batch of products;
● We should carry out 100% magnetic powder flaw detection;
● Surface treatment: plastics spraying.
● Color code: red RAL3020/yellow RAL1003.
SLR292-G80 LIFTING EYE BOLT WITH OMEGA LINK
Ultimate load is 4 times the Working Load Limit.

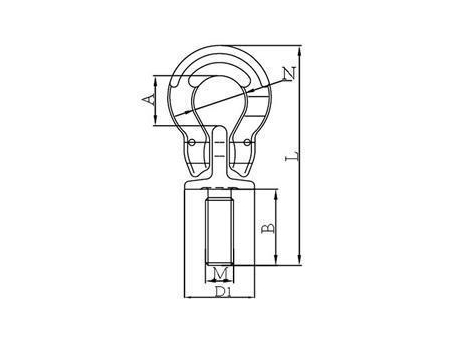

| Item Code | Weight (kg) | Woring Load Limit (t) | Breaking Load (t) | A±1 | B±1 | N | M | D | L±2 |
| SLR-292-M12 | 0.33 | 1.25 | 5 | 24.8 | 35 | 23.6 | 12 | 34 | 111.8 |
| SLR-292-M14 | 0.44 | 1.5 | 6 | 24.8 | 35 | 23.6 | 14 | 34 | 111.8 |
| SLR-292-M16 | 0.44 | 1.87 | 7.48 | 24.8 | 35 | 23.6 | 16 | 34 | 111.8 |
| SLR-292-M18 | 0.58 | 2.5 | 10 | 30.4 | 44 | 31.5 | 18 | 40 | 130.6 |
| SLR-292-M20 | 0.58 | 3.12 | 12.48 | 30.4 | 43 | 31.5 | 20 | 40 | 129.6 |
| SLR-292-M27 | 2.07 | 6.25 | 25 | 48 | 73 | 49.5 | 27 | 67 | 211 |
| SLR-292-M30 | 2.11 | 7.5 | 30 | 48 | 73 | 49.5 | 30 | 67 | 211 |
