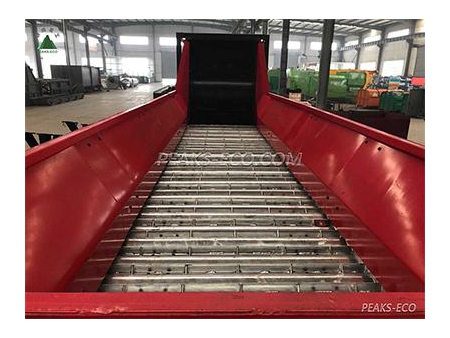

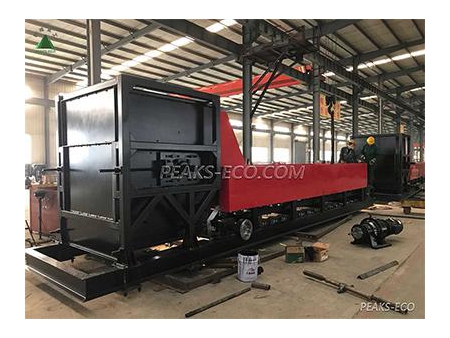

Belt Feeder
Here at Qunfeng we offer heavy-duty, multifunctional transportation and metering belt feeders that combine the functions of automatic bag opening and automatic feeding for numerous waste processing applications. For example, recyclables in bags are loaded into the hopper and the bags are ripped open to spill the contents so that they can be sent to subsequent processing stages. The machine can also keep track of the amount of materials moving along the belt.
Feeding speed can be precisely adjusted to maximize sorting efficiency.
Features
- Feeding speed and system capacity are both increased by up to 20%
- Suitable for automated and unmanned processing and ensures uninterrupted and uniform feeding, maximizing the sorting and screening efficiency
- Good compatibility with a wide range of existing equipment types
- The traction force of the drive roller can reach 60HP
- Convenient and durable feed hopper to prevent the overflowing of waste
Custom options
- Size
- Motor configuration
Recommended models
Model | | MBF200 | MBF400 | MBF600 | MBF1000 |
Steel-belt conveyor | mm | 1200 | 1400 | 1600 | 2000 |
Belt width | mm | 1200 | 1400 | 1600 | 2000 |
Belt length | mm | till 20 meters | till 20 meters | till 25meters | till 25 meters |
Belt speed | m/min | variable frequency control | |||
Side panel height | mm | 1000 or 2000 | 1000 or 2000 | 2000 | 2000 |
Loading height | mm | 1850 or 2850 | 1850 or 2850 | 2850 | 2850 |
Standard color | | option | |||
Drum width | mm | 1200 | 1400 | 1600 | 2000 |
Drum diameter | mm | 600 0r 1000 0r 1350 | |||
Drum motor | KW | 15 or depending on requirements | |||
Rotations/min | | 40-70, with variable frequency control | |||
Capacity | ton/h | < 10 | 15-25 | 25-35 | >40 |
