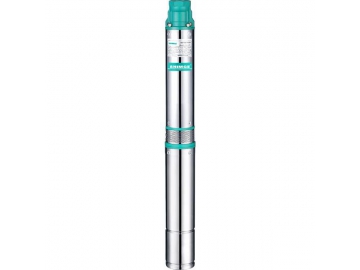

4SE(m) 4" Deep Well Pump
Performance Range
Max. Flow: 22m3/h
Max. Head: 480m
Application Limits
- Max. ambient temperature < 40℃;
- Sand content(in mass fraction)up to 0.01%;
- hydrogen sulfide content up to 1.5mg/L, chloride ion content up to 400mg/L;
- pH 6.5 to 8.5;
- Maximum: 70m below the static water table.
Certificate
Application Fields
- Building/construction work/domestic water supply;
- Irrigation and small water work;
- Landscaping;
- Water conservancy system;
- Factory.
Features
- Edible oil filled motor, stable& reliable running with pressure regulating membrane;
- Single phase motor with built in B Grade oil proofed capacitor &thermal mode protector;
- Available with cable with a motor plug, disassemble conveniently;
- Available with pump casing with plug, 2~8 m3/hrs series with single stage floating impellers, 10~16m3/hrs series with integrated stage floating impellers;
- Installation in 4" or larger boreholes;
Optional Available On Request
Oil chamber is available with brass or SS304; Discharge chamber, Inlet parts are available SS304.
