Electric Straddle Stackers

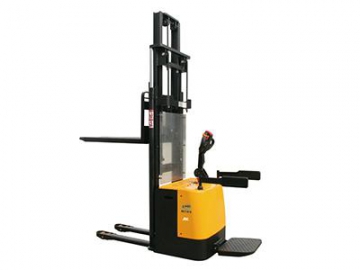

If you are looking for superior stacking ability and reliability for your loading dock operations, you are in luck. Our QDA-S electric pallet stacker is a high efficiency piece of machinery with adjustable outriggers allowing it to excel in various working environments.
Load capability: 1.5T-2T
The maximum lifting height: 3500mm.
Features
- Convenient maintenance increases uptime.
- The descent speed can be adjusted to guarantee stability during ascent and descent. It also reduces the brake pressure and wear.
- The electronic steering system makes maneuvering easier and smooth.
Technical parameters
| Features | Model | | QDA |
| Drive Type:electric(industry battery), diesel, gasoline, fuel gas | | Electric | |
| Operator type | | Standing | |
| Rated capacity | Q(kg) | 1500/2000 | |
| Load center distance | c(mm) | 600 | |
| Wheelbase | Y(mm) | 1355 | |
| Weight | Service weight(with battery) | kg | 1050/1220 |
| Chassis | Wheels | | Polyurethane |
| Steer wheel size | | Φ248×75 | |
| Load wheel size | | Φ80×70 | |
| Additional wheel | | Φ115×50 | |
| Wheel number, steer wheel/load wheel （x = driving wheel） | | 1x+2/4 | |
| Tread, front | b10(mm) | 632 | |
| Tread, rear | b11(mm) | 385/500 | |
| Dimension | Retracted height | h1(mm) | 2080/1720/1970/2080/2220 |
| Max. lift height | h3(mm) | 1600/2500/3000/3300/3500 | |
| Height, mast extended | h4(mm) | 2180/3080/3580/3880/4180 | |
| Height, fork lowered | h13(mm) | 85 | |
| Overall length | l1(mm) | 2000/2050 | |
| Overall width | b1(mm) | 850 | |
| Fork dimension | S/e/l(mm) | 55/185/1150 | |
| Fork width | b5(mm) | 570/685 | |
| Ground clearance | m2(mm) | 25 | |
| Aisle width for pallets 1000×1200 crossways | Ast(mm) | 2420 | |
| Aisle width for pallets 800×1200 lengthways | Ast(mm) | 2360 | |
| Turning radius | Wa(mm) | 1580 | |
| Performance Data | Traveling speed, laden/unladen | Km/h | 3/3.5 |
| Lifting speed, laden/unladen | m/s | 0.1/0.12-0.08/0.1 | |
| Descending speed, laden/unladen | m/s | 0.15/0.12-0.12/0.1 | |
| Max. gradeability, laden/unladen | % | 8/10 | |
| Traveling brake | | Electromagnetic brake | |
| Motor | Driving motor power | kW | 1.5 |
| Lifting motor power | kW | 3.0 | |
| Battery voltage/rated capacity | V/Ah | 24/210 | |
| Battery weight | Kg | 190 | |
| Turing mode | | Electric power system | |
| Other details | Noise Level at Operator's Ear, according to DIN12053 | dB(A) | 70 |
Headquartered in Ninghai, China’s hub of forklift trucks manufacturing, Cholift Forklift Co. is a trustworthy producer of reliable material handling equipment. Our warehouse equipment include electric forklifts, electric pallet jacks, pallet trucks, hand pallet jacks, and lift table carts. In addition to these outstanding products, we can also offer customers complete handling and industrial storage solutions according to their requirements.

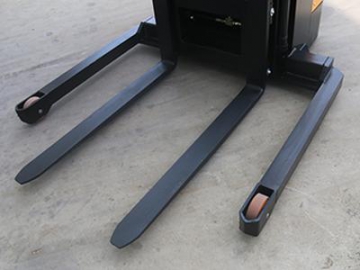

Photos Gallery
