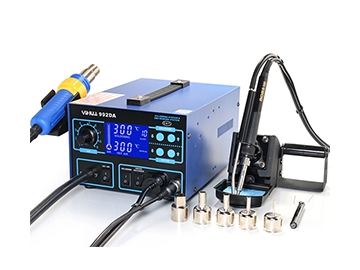

LCD Display Pump Type Hot Air Soldering Rework Station with Smoke Absorber, Item WEP-992DA
Description
The Yihua WEP-992DA hot Air Soldering Station is designed for high-quality soldering and de-soldering of multiple types of electronic components. It has special advantages for the de-soldering of mobile phone flex cables and cable boards. The soldering iron handle also comes with a sleep mode and smoke absorbing function, the smoke absorbing pen can effectively remove exhausted smoke which provides a clean and healthy environment for operators.
Rated voltage | AC 220V±10% 50Hz |
Power | 720W±10%(Max) |
300℃The thermostat power of (high-speed PID programmable energy saving) | 250W±10% |
Working environment | 0~40℃ relative humidity<80% |
Storage environment | -20~80℃ relative humidity<80% |
Body size | 255*188*125mm |
Weight | 5.11KG |
Parts parameters | Hot air gun | Soldering iron |
Work voltage | AC 220V±10% 50Hz | AC 26V±10% 50Hz |
Output power | 550W | 75W |
Temperature range | 100℃~480℃ | 200℃~480℃ |
Airflow type | Diaphragm pump | --- |
Air Flow | 28L/min(MAX) | --- |
Temperature Stability | ±1℃ (Static) | ±1℃ (Static) |
Display Type | LCD display | LCD display |
Temperature correction type | The PID digital program proofreading | The PID digital program proofreading |
PID Temperature correction cycle | rapidly 20ms | high-speed 100ms |
Heating elements | Ceramic skeleton heater | Imported heater |
Standard nozzles/tips | (10mm,8mm,5mm,3mm,13mm) 5PCS nozzles | B |
Tip ground impedance | --- | <2Ω |
Tip of ground voltage | --- | <2mV |
Standard Configuration
Machine: 1 set
Power Cable: 1 pc
Iron Handle (including a heater and tip): 1pc
Air Gun Handle: 1pc
Ferroalloy Iron Holder: 1pc
Power Cable: 1 pc
Iron Handle (including a heater and tip): 1pc
Air Gun Handle: 1pc
Ferroalloy Iron Holder: 1pc
Thermal Resistant Sponge: 1pc
Air Nozzle: 5pcs
Smoke Absorption Sponge: 5pcs
IC Extraction Tool: 1pc
Instruction Book: 1pc
Air Nozzle: 5pcs
Smoke Absorption Sponge: 5pcs
IC Extraction Tool: 1pc
Instruction Book: 1pc
