WN203WM13M Precision Integrated Aluminum Alloy Linear Stage

WN203WM13M Precision Integrated Aluminum Alloy Linear Stage
WN203WM13M Precision Integrated Aluminum Alloy Linear Stage
WN203WM13M Precision Integrated Aluminum Alloy Linear Stage
Request a Quote

The precision integrated aluminum alloy linear stage can be used to provide multi-dimensional adjustment manually in the fields of scientific research, automatic measurement and test.

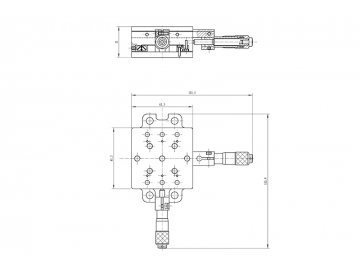

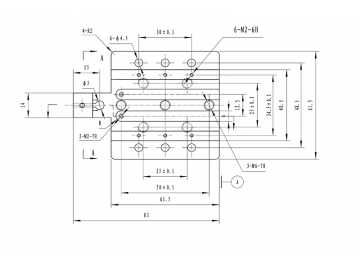

Specifications
Model Table size Adjusting axes Travel distance Drive method Drive position Minimum graduation Precision Minimum incremental motion Straightness Yawing Pitching Table parallelism Driving parallelism Two-dimensional verticality Load capacity Weight
WN203WM13M 61.5mm×61.5mm X, Y two axes 13 mm micrometer head drive center drive 0.01 25″ 20″ 50μ 25μ 25μ 10kg 0.4kg
Features
  • The integrated linear stage is made of duralumin and the surface is treated by anodizing.
  • Micrometer head drive is adopted to read quantificationally. The stage table is reset by spring and other ingenious mechanism design is adopted to eliminate backlash, therefore, the linear stage has a higher precision.
  • The micrometer heads of two horizontal axes are mounted on the same horizontal plane for easy operation.
  • Adopting cross roller guide, the linear stage moves smoothly, which ensures the stage has a high accuracy of straightness, yawing and pitching.
  • It is easy to use with a compact structure, and two- dimensional adjustment can be realized in a small space.
  • The integrity of the structure ensures the parallelism and verticality of the motion along two axes.
