Isuzu Diesel Generator, IK30200
Technical Parameters
| Model | IK30200 | ||
| Phase | 3 Phase | ||
| Power Factor | 0.8cosØ | ||
| Frequency | 50HZ | 60HZ | |
| Speed | RPM | 1500 | 1800 |
| Max. Power | KVA | 27.5 | 33.0 |
| KW | 22.0 | 26.0 | |
| Rated Power | KVA | 25.0 | 30.0 |
| KW | 20.0 | 24.0 | |
| Rated Voltage | V | 400 | 400 |
| Rated Current | A | 36 | 43 |
| Fuel Consumption | G/KW.H | 228 | |

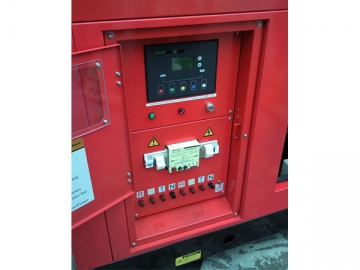

| Generator Controller | Auto Multi-function | ||

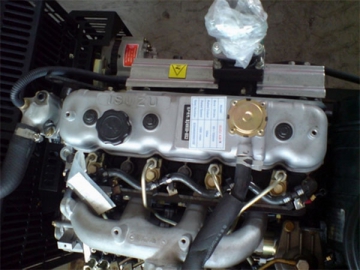

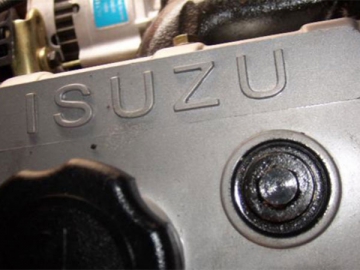

| Engine Model. | 4JB1 | ||
| Alternator Model. | TCU188C | ||
| Clinder No. | 4 | ||
| Starting System | Electric Start | ||
| Cooling Method | Water-cooling | ||
| Protection Grade | IP21-IP23 | ||
| Insulation Class | H | ||
| Size (MM) | Silent Type | 2250*950*1100 | |
| Open Type | 1650*700*960 | ||
| Optional | ATS (auto transfer switch) | ||
