WN501WML Low Profile Integrated Linear Stage
The low profile integrated linear stage can be used to provide multi-dimensional adjustment manually in the fields of scientific research, automatic measurement and test.

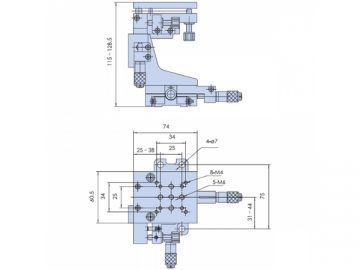

Specifications| Model | Table size | Adjusted Axes | Travel range | Drive method | Drive position | Minimum graduation | Precision | Minimum incremental motion | Verticality | Running verticality | Load capacity | Weight |
| WN501WML | 74mm×60.5mm | X, Y, Z, θX, θZ five dimensions | 13 mm/±5° | Micrometer head | Center drive | 0.01 | 5μ | 2μ | 60μ | 60μ | 3kg | 1.2kg |
- The integrated linear stage is made of duralumin and the surface is treated by anodizing.
- The linear stage is easy to use with a compact structure, and five-dimensional adjustment can be realized in a small space.
- The micrometer heads of two horizontal axes are mounted on the same horizontal plane for easy operation.
- Adopting ball bearing guide, the stage moves smoothly, which ensures the stage has a high accuracy of straightness, yawing and pitching.
- The drive structure of Z axis is rigid, which makes the stage has larger load capacity.
- The pitching and rolling adjustment is driven by M6X0.25 superfine adjustment screw with reset spring, making the linear stage has an excellent stability.
- Micrometer head drive is adopted to read quantificationally. The stage table is undefinedreset by spring and other ingenious mechanism design is adopted to eliminate backlash, therefore, the stage has a higher precision.
