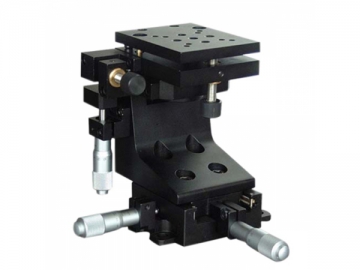

WN502WML Low Profile Integrated Linear Stage

: http://optical-equipment.com/2-6-2-2-low-profile-integrated-linear-stage.html

The low profile integrated linear stage can be used to provide multi-dimensional adjustment manually in the fields of scientific research, automatic measurement and test.

Specifications

Model	Table size	Adjusted	Travel range	Drive method	Tilt range	Load capacity	Weight	Material	Surface treatment
WN502WML	40mm×50mm	X, Y, Z, θx, θy five axes	3 mm/±5°	Adjustment screw	θx, θy=8°	2kg	0.6kg	Hard aluminum	Sand blasting and black anodizing

Features

The linear stage is easy to use with a compact structure, and five-dimensional adjustment can be realized in a small space.
The adjustment screws are installed in the same direction, allowing the operator to adjust the five axes in the same position.
The precision stage moves smoothly, which ensures the stage has a high accuracy of straightness, yawing and pitching.
The drive structure of Z axis is rigid, which makes the stage hard to deform and has a larger load capacity.
The pitching and linear adjustment is driven by M6X0.25 superfine adjustment screw, high quality disc spring is adopted to reset, ensuring the stage has an excellent stability.
