Isuzu Diesel Generator, IK30250
Technical Parameters
| Model | IK30250 | ||
| Phase | 3 Phase | ||
| Power Factor | 0.8cosØ | ||
| Frequency | 50HZ | 60HZ | |
| Speed | RPM | 1500 | 1800 |
| Max. Power | KVA | 35.0 | 41.3 |
| KW | 28.0 | 33.0 | |
| Rated Power | KVA | 31.3 | 37.5 |
| KW | 25.0 | 30.0 | |
| Rated Voltage | V | 400 | 400 |
| Rated Current | A | 45 | 54 |
| Fuel Consumption | G/KW.H | 228 | |
| Generator Controller | Auto Multi-function | ||

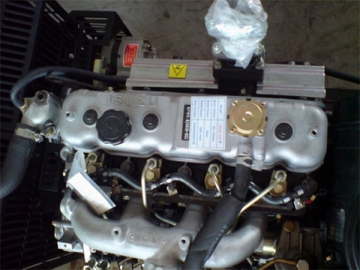

| Engine Model. | 4JB1T | ||
| Alternator | TCU188D | ||
| Clinder No. | 4 | ||
| Starting System | Electric Start | ||
| Cooling Method | Water-cooling | ||
| Protection Grade | IP21-IP23 | ||
| Insulation Class | H | ||

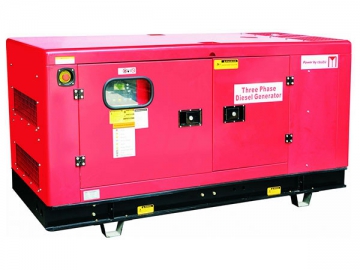

| Size (MM) | Silent Type | 2250*950*1100 | |
| Open Type | 1700*700*960 | ||
| Optional | ATS (auto transfer switch) | ||
