This bag opening equipment is designed to rip open and remove bags holding municipal solid waste so that it can be sorted with subsequent processes.

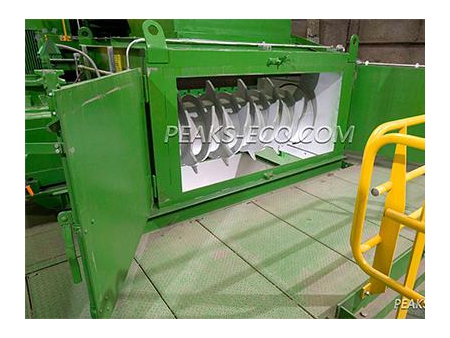

Collected MSW is most often packed in PP woven bags or simple plastic trash bags. Our bag openers feature steel knives that are fixed to a rotating drum to rip open the bags and save workers from the tedious task of manually cutting open bags. Materials form the bags are discharged to subsequent sorting systems.

Application

Bag openers are commonly applied as feeding devices in MRF and MBT systems. For MRF applications, uninterrupted uniform feeding after bag opening needs to be guaranteed to achieve high sorting efficiency and precision. In MBT systems, the bag opener can be combined with shredding equipment for high speed, efficient processing. Additionally, bag openers are also used to split waste bales in RDF processing.

Features
  • Over 95% opening rate
  • High opening rate of “bags within bags”
  • Suitable for a wide range of different waste types
  • Excessive feeding protection
  • Large storage hopper ensures a uniform discharge volume
  • Anti-blockage system protects the bag opener from entanglement or wrapping of bulky and disruptive materials such as strings, tapes, wires and foils
  • Blades are adjustable according to the specific waste composition
  • High throughput of more than 45 tons per hour
Custom options
  • Size
  • Motor configuration
Recommended models
Two-axis bag opener Unit BOB1400 BOB1600 BOB1800
Max. capacity m3/h 60 80 120
Capacity t/h 10-18 20-40 40-55
Main power drive system kw 7.5-15 7.5-15 7.5-15
Second power drive system kw 5.5-7.5 5.5-7.5 5.5-7.5
Length of rotor mm 1400 1600 1800
Speed of the main rotor rpm 0-12 0-12 0-12
Speed of second rotor rpm 0-5 0-5 0-5
Height mm 1060 1060 1060
Width mm 1700 1700 1700
Length mm 1680 1880 2280
