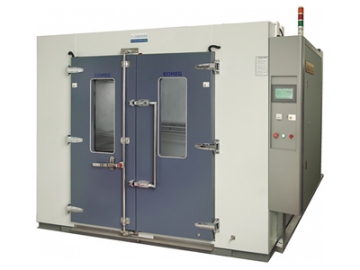

Environmental Testing Walk in Room, Item KMHW-13.2L Humidity / Temperature Test Chamber
Cabinet
Procedure room size: IW 3000 × IH 2000 × ID 2200 mm
Boundary dimension: depend on the design
Temperature
Temp range: -10°C ~ +85°C
Temp deviation ≤±2°C (no-load)
Temp fluctuation ≤±0.5°C (no-load)
Temp uniformity ≤2°C
Freezing rate 40°C to 0°C 1°C per min
Humidity
Humidity range 20%R.H. ~98%R.H
Humidity deviation ±3%RH (>75%RH)
±5%RH (≤75%RH)
Working temp 5 ~35℃, humidity≤85%R.H
Electrical parameters AC380V 50Hz, 3Phase 4Wire+Grounding Wire
