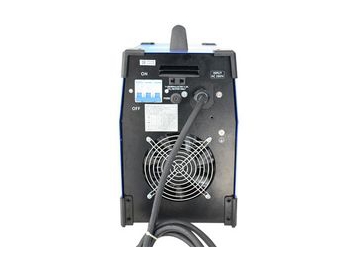

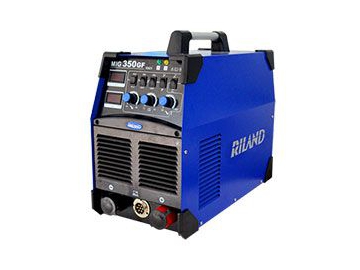

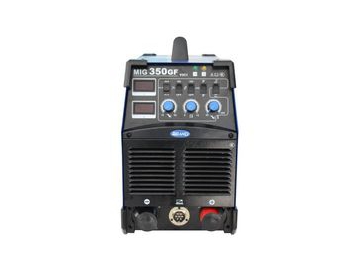

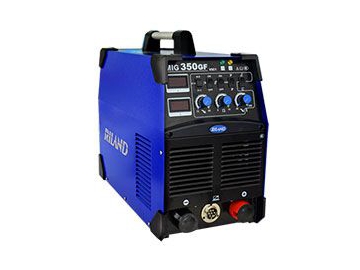

MIG 350GF (Ⅱ)

Features
  • IGBT inverter technology, providing high welding reliability and better arc stability;
  • Improved welding process for better welding effect with minimum of weld spatter;
  • Improved design of output interface, 7-pin control plug;
  • Welding wire sizes of 1.0/1.2mm are recommended;
  • Applicable to welding operations with solid wire and flux-cored wire of different diameters;
  • Voltage / current presetting and actual welding parameters displaying, easy to operate;
  • Current, voltage and arc characteristics are adjustable, with 2T/4T setting;
  • Easy to carry, suitable for installation and fabrication applications requiring welding operation;

Specifications
Model MIG 350GF(Ⅱ)
Processes MIG MMA
Input voltage 3P/380V±15% 3P/380V±15%
Frequency 50/60Hz
Rated input current (A) 21 23
Output current adjusting range (A) 60-350 40-350
Output voltage (V) 17-31.5 21.6-34
No-load voltage (V) 60V 60V
Duty cycle (%) 40 35
Power factor 0.90
Efficiency 85%
Type of wire feeder External
Wire feeding speed (m/min) 2-16
Post-flow time (S) 1.0±0.5
Welding wire diameter (mm) 0.8/1.0/1.2
Insulation class Class H
Protection grade IP21
Welding thickness (mm) ≥0.8
Net weight (kg) 22
Dimensions (L×W×H) 508×244×423 mm

Package Included

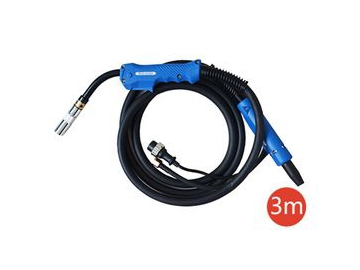

  • MIG welding torch, 1pc

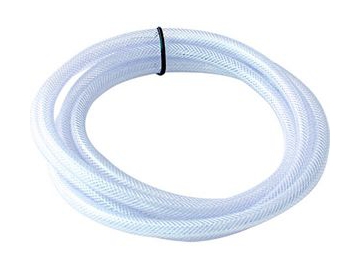

  • Gas hose, 1pc

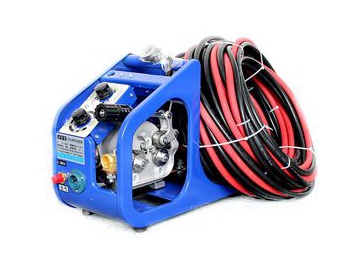

  • Wire feeder, 1 unit

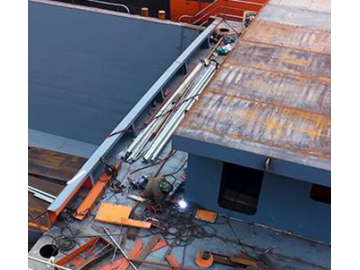

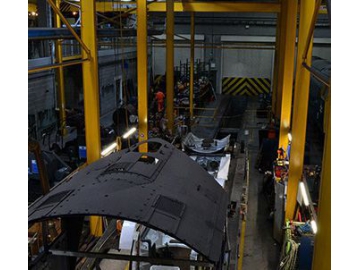

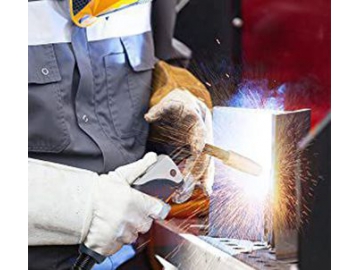

Applications

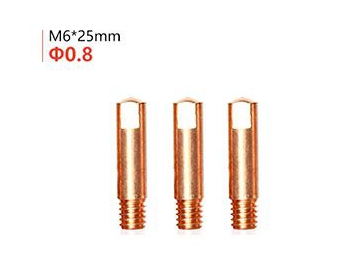

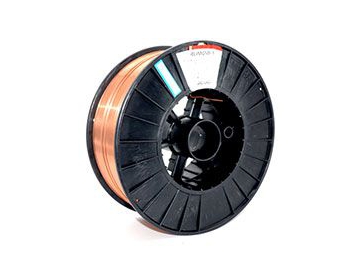

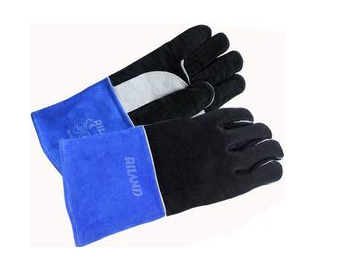

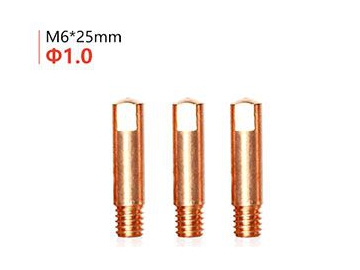

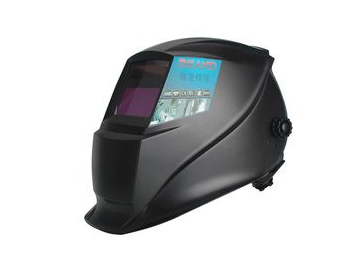

Optional Welding Accessories
