Peeler Centrifuge with Vacuum Suction Manufacturer

Peeler Centrifuge with Vacuum Suction

: http://sdlcentrifuge.com

The L(P)XG peeler centrifuge with vacuum suction is a vertical top discharge centrifuge developed on the basis of L(P)GZ series. A vacuum suction device is set on the cover, and it helps to transfer scraped products to the outside of the centrifuge during discharging process.

Technical Data of Peeler Centrifuge with Vacuum Suction

Model	L(P)XG-800	L(P)XG-1000	L(P)XG-1200	L(P)XG-1250	L(P)XG-1500	L(P)XG-1600
Drum diameter (mm)	800	1000	1200	1250	1500	1600
Drum height (mm)	400	420	500	630	700	800
Drum volume (L)	100	140	260	400	570	800
Loading capacity (kg)	130	180	320	520	740	1000
Drum speed (r/min)	1500	1080	970	1000	850	850
Max. separating factor	1007	652	631	698	605	646
Motor power (kW)	7.5	15	18.5	18.5	30	37
Weight (kg)	2100	3600	4450	5500	10850	12600

Main Characteristics of Peeler Centrifuge with Vacuum Suction
1. Optimized functions for efficient and reliable working
2. Perfect seal for bearing seat
3. Low labor intensity and better working environment
4. Minimal residual heel

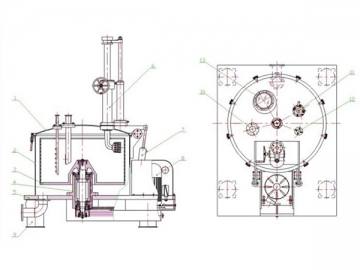

Structure of Peeler Centrifuge with Vacuum Suction

1. Cover
2. Housing
3. Drum
4. Bearing Seat
5. Chassis

6. Vacuum Suction Device
7. Cover Opening Device
8. Transmission Parts
9. Shock Absorber

10. Feed Pipe
11. Fill Level Controller
12. Wash Pipe
13. Sight Glass
