Side Emitting White 4000K Non-Waterproof SMD315 LED Strip
Key Features
- Ambient Temperature: -20℃ to 45℃
- Voltage: DC24V
- Length/Reel(M/ft): 5m/16.4ft
- High-quality 315 SMD chips

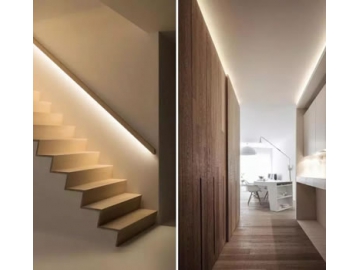

- Mounting width of the LED strip light is only 4mm, ideal for special lighting projects inside narrow space, such as cove lighting or furniture edge lighting
- Soft 4000K natural light. High luminous efficacy up to 100lm/W
- CRI 90 , allowing for revealing the original colors of illuminated objects
Specification
| Model | Led Qty | Power | Lumens per feet | Cutting increment | LED pitch | PCB width |
| FE05WS-P0-G1 31X9x 24V60S W08L05 | 60LEDs/M | 4.8W/M 1.46W/ft | 500lm/M 152lm/ft | 100mm 3.94inch | 16.7mm 0.66inch | 8mm 0.31inch |
| FE07WS-P0-G1 31X9x 24V96S W08L05 | 96LEDs/M | 7.6W/M 2.32W/ft | 750lm/M 229lm/ft | 62.5mm 2.46inch | 10.4mm 0.41inch | 10mm 0.39˝ |

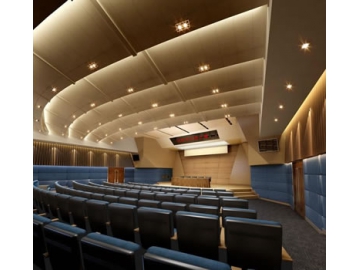

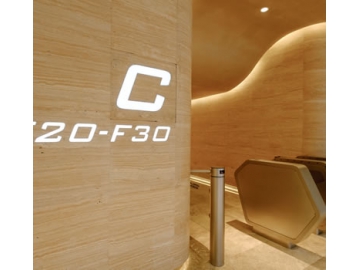

- Applications
Accessories

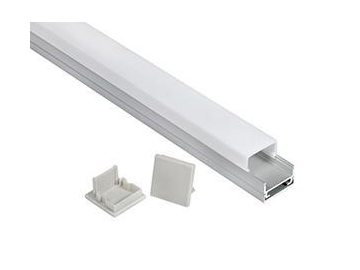

- LED Aluminum Channel

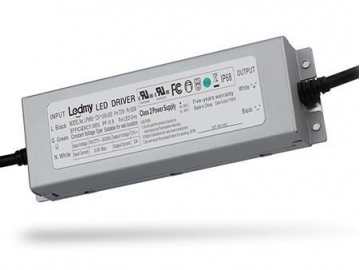

- Waterproof LED Power Supply, Compact Series
- LED Neon Flex Accessories
Projects

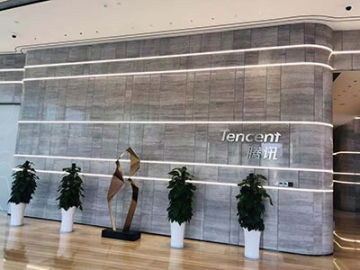

- Tencent Innovation and Entrepreneurship Town

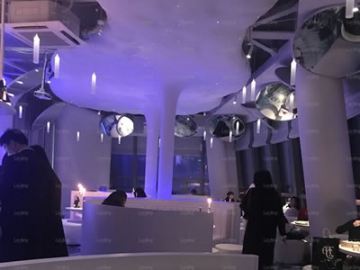

- Tian Ji Bar - Ningbo Treasure Center

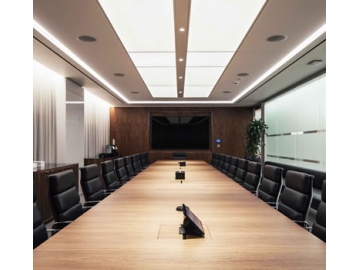

- Office Lighting Project in Guangzhou
