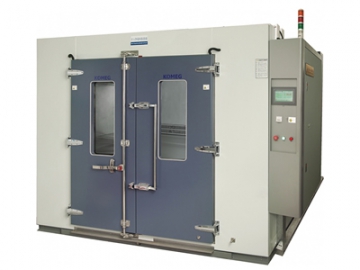

Environmental Walk in Room, Item KMHW-16L Humidity / Temperature Testing Chamber
Cabinet
Procedure room size: IW 3900 × IH 2100 × ID 2000 mm
Boundary dimension: depend on the design
Temperature
Temp range: -60°C ~ +85°C
Temp deviation ≤±2°C (no-load)
Temp fluctuation ≤±0.5°C (no-load)
Temp uniformity ≤2°C
Heating rate 20°C to 85°C 60min
Freezing rate 20°C to -60°C 120min
Humidity
Humidity range 10%R.H~95%R.H
Humidity deviation ±2.5%RH (>75%RH)
±5%RH (≤75%RH)
Working temp 5 ~ 35℃, humidity≤85%R.H
Electrical parameters AC380V 50Hz, 3Phase 4Wire+Grounding Wire
